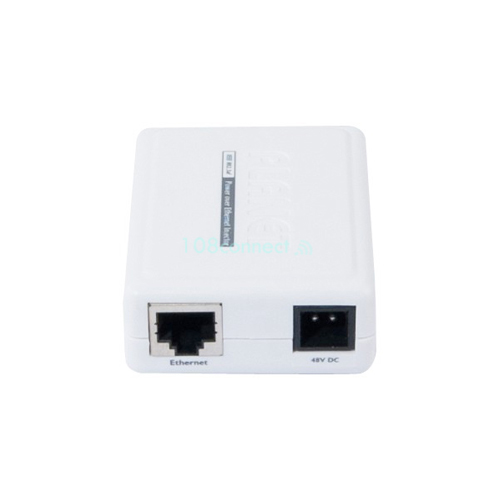

PLANET POE152S Power over Ethernet Gigabit Ethernet (5V&12V)

จำนวนครั้งที่เปิดดูสินค้า : 9581 | ความคิดเห็น: 0

เพิ่มเมื่อ: 2013-06-20 11:14:57.0

แก้ไขล่าสุด: 2019-05-14 13:28:06.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
POE152S IEEE 802.3af Power over Ethernet Splitter-End-Span for Gigabit Ethernet (5V&12V) (สินค้ารับประกัน 3 ปี)

1190.00 บาท

Planet POE152S

POE152S IEEE 802.3af Power over Ethernet Splitter-End-Span for Gigabit Ethernet (5V&12V)

- Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3 / 802.3u / 802.3ab 10/100/1000Base-T Ethernet standard

- Splits the 48V DC power over RJ-45 Ethernet cable into different DC output

- LED indicators for power input status

- Deployment distance up to 100 meters

- Two adjustable output voltage options (5V/2A, 12V/1A) to fit various devices

- Auto-detect of IEEE 802.3af PoE equipments to protect devices from being damaged by incorrect installation

- Works with EIA568, category 5/5e/6, 2/4-pair cables for 10Base-T or 100Base-TX and 1000Base-T

Specification

Hardware Specification
Hardware version	version 2
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000Base-T IEEE 802.3af Power over Ethernet
Ethernet Connector	2 x RJ-45 (1 for Data + DC input, 1 for Data output)
Data Rate	10/100/1000Mbps (vary on Ethernet device attached)
DIP Switch	5VDC / 12VDC output voltage
Number of Device can be powered	1
Ethernet Cable	TIA / EIA-568, Category 5/5e/6 cable
LED Indicator	1 x PoE ready / in-use
Operating Environment	0~50 Degree C, 5~90%RH
Storage Environment	-10~70 Degree C, 5~90%RH
Dimension (W x D x H)	73 x 55 x 24 mm
Weight	50g
Emission	FCC Class A, CE mark
Standard Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3af Power over Ethernet
