PLANET POE-173 60-Watt Ultra Power over Ethernet Injector

จำนวนครั้งที่เปิดดูสินค้า : 7066 | ความคิดเห็น: 1

PLANET POE-173 60-Watt Ultra Power over Ethernet Injector

เพิ่มเมื่อ: 2017-12-08 14:00:18.0

แก้ไขล่าสุด: 2019-05-14 12:46:29.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
POE-173 60-Watt Ultra Power over Ethernet Injector, 1-Port 10/100/1000Mbps Data + Power output, 1-Port 10/100/1000Mbps Data input, 1 x AC 100-240V input power socket(สินค้ารับประกัน 3 ปี)

2700.00 บาท

PLANET POE-173

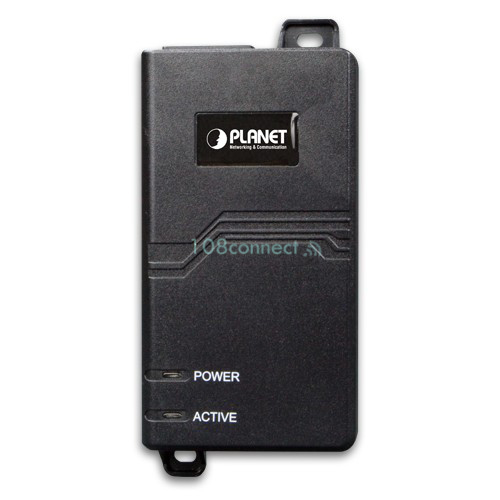

POE-173 60-Watt Ultra Power over Ethernet Injector

- Ultra Power over Ethernet PSE

- Up to 60 watts of power on 4-pairs UTP

- Backward compatible with IEEE 802.3at/af PD device

- Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation

- Remote power feeding up to 100m

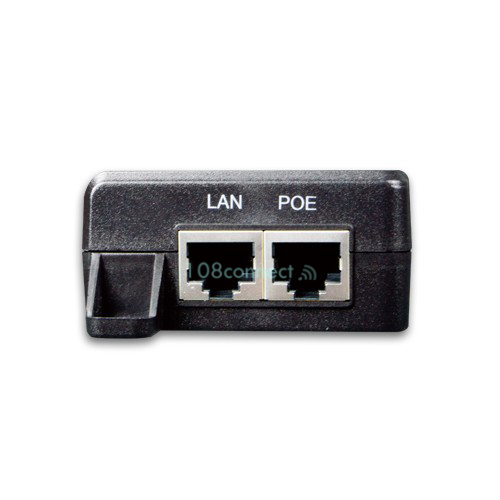

- 1-Port 10/100/1000Mbps Data + Power output

- 1-Port 10/100/1000Mbps Data input

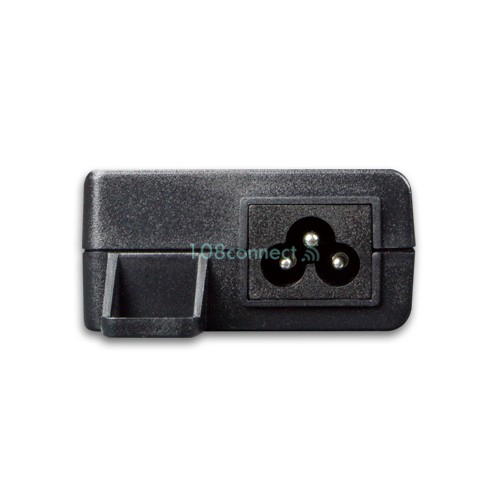

- 1 x AC 100-240V input power socket

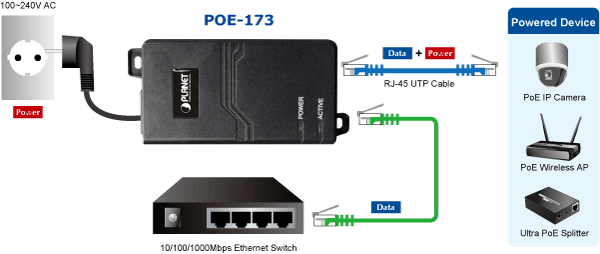

Installation of Ultra PoE Injector

Due to the backward capability of IEEE 802.3at/af PoE standard, the Ultra PoE Injector can directly connect with any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt & Zoom) speed dome network cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.

ThInstallation of Ultra PoE Injector and Splitter

For a place which is hard to find the power inlet, the POE-173 and POE-171S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

Extended Installation of IEEE 802.3at Injector and PoE

Is 100 meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the POE-173 and PLANET PoE Extender,POE-E201, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-173. The POE-173 delivers PoE power over the first 100 meters to the PoE Extender over UTP cable, and then the PoE Extender forwards the Ethernet data and remaining POE power to the remote PoE IP camera.
