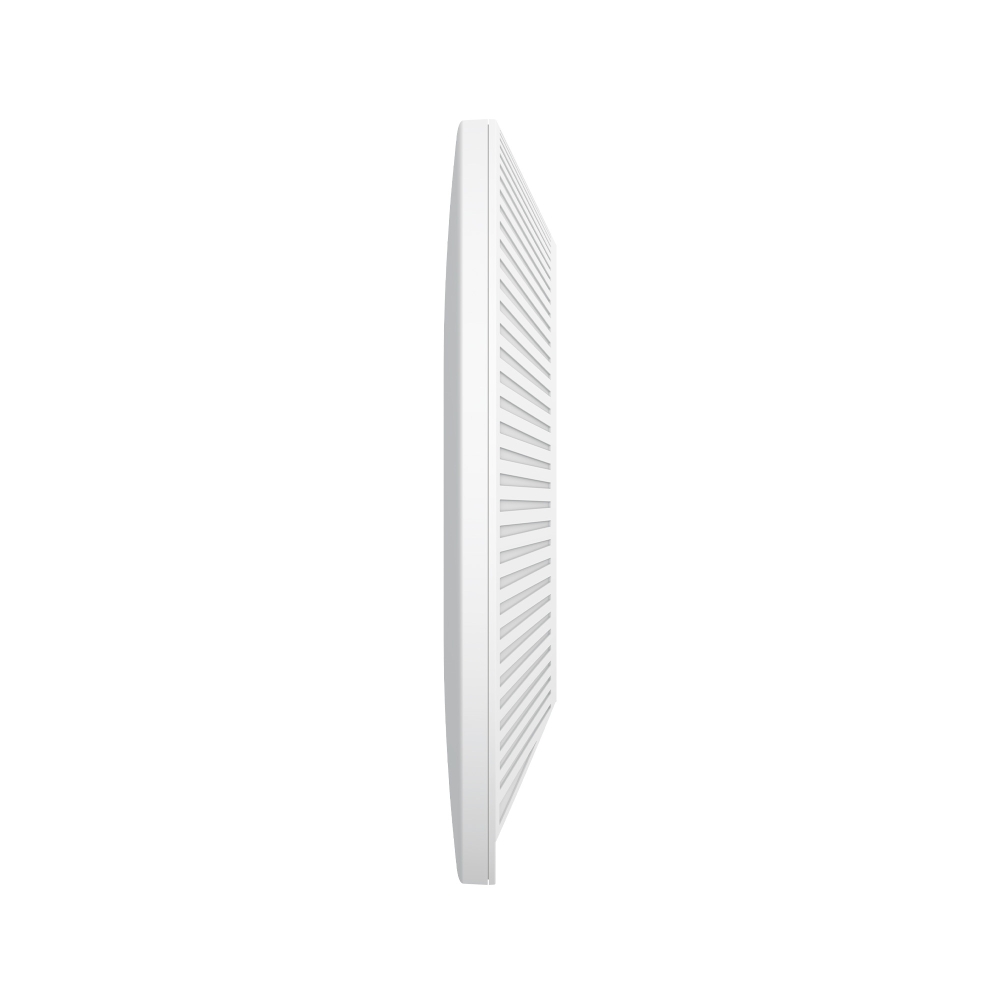

TP-LINK EAP683-UR AX6000 Ceiling Mount WiFi 6 Access Point
เพิ่มเมื่อ: 2025-01-23 11:35:49.0
แก้ไขล่าสุด: 2025-01-23 11:39:16.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยต์) TP-LINK EAP683-UR AX6000 Ceiling Mount WiFi 6 Access Point, 1×2.5G RJ45 Port
TP-LINK EAP683-UR
Access Point (แอคเซสพอยต์) TP-LINK EAP683-UR AX6000 Ceiling Mount WiFi 6 Access Point, 1×2.5G RJ45 Port
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)

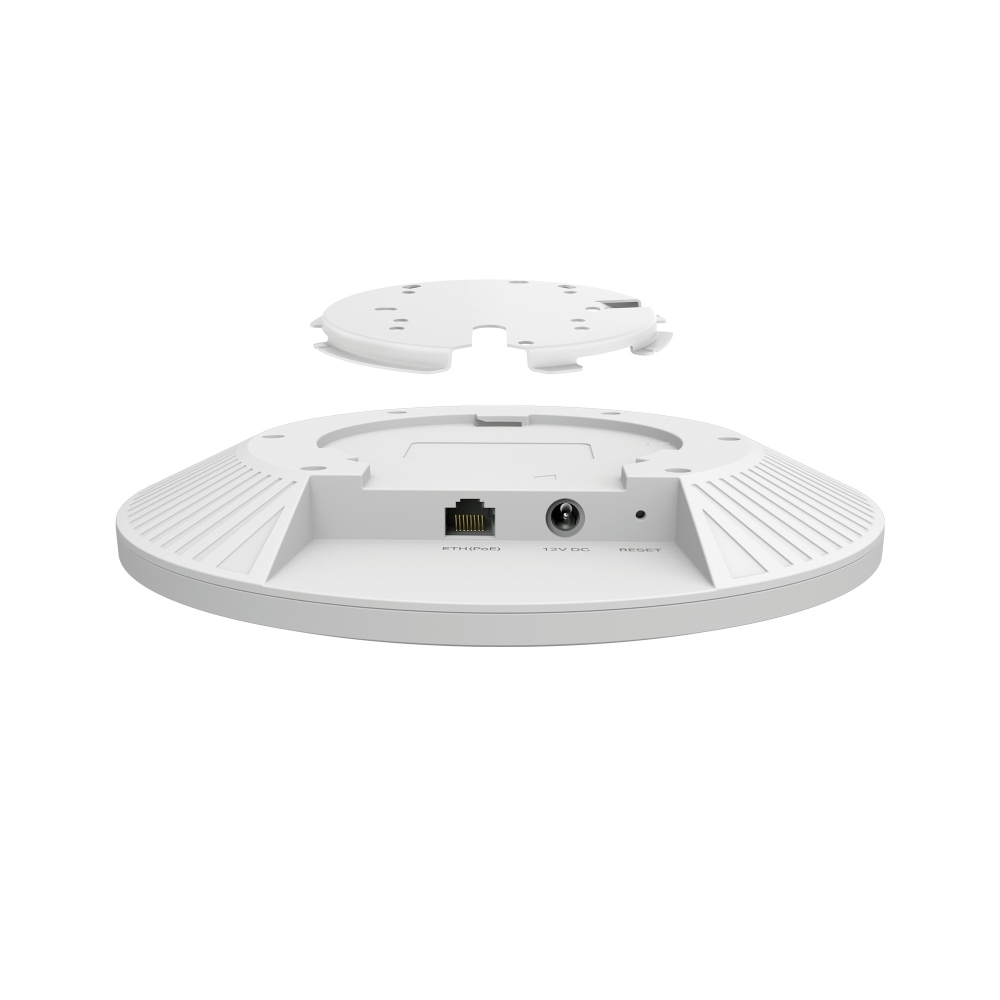

Interface :
1× 2.5 Gigabit PoE+ Port
Button : Reset
Power Supply :
• 802.3at PoE
• 12 V / 2 A DC
Note：Power adapter is not included.
Power Consumption :
• EU: 20.43W
• US: 23.69W
Dimensions ( W x D x H ) : 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type :
Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth : Yes

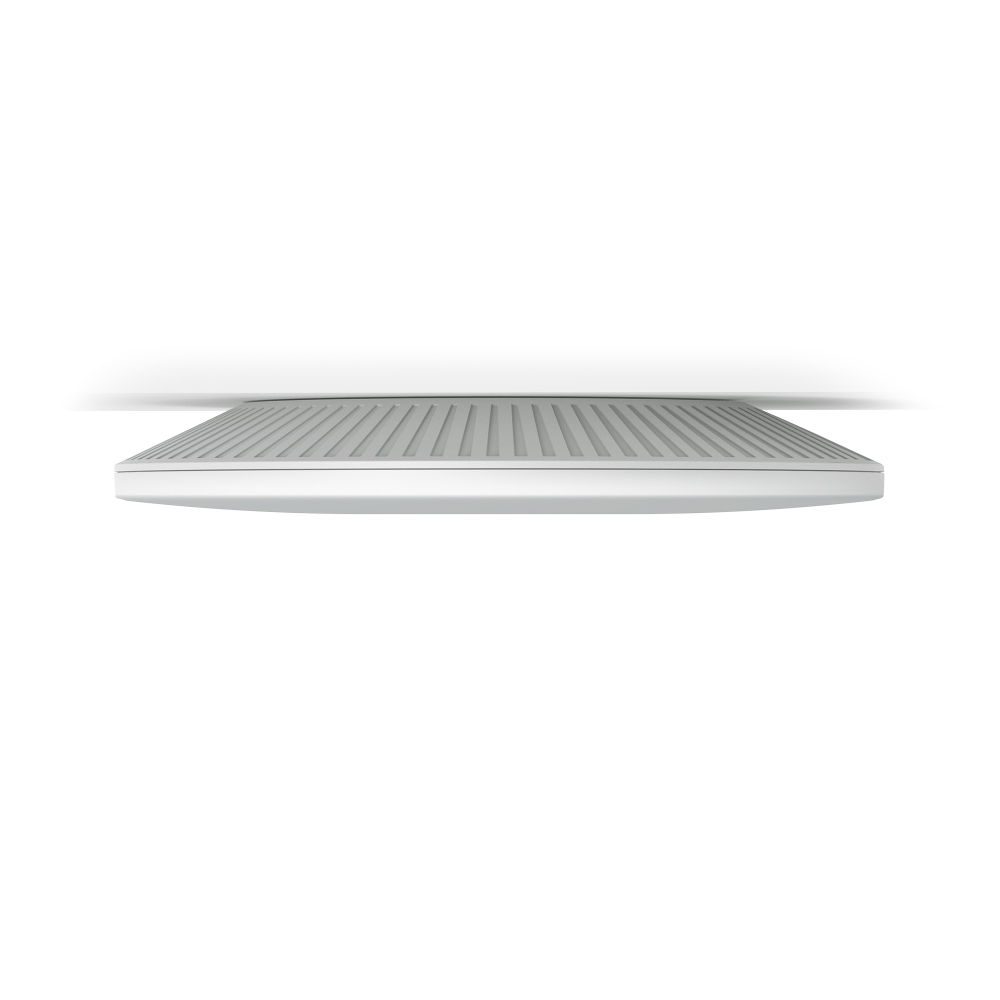

Mounting : Ceiling /Wall Mounting (Kits included)
Coverage : 185㎡(2000ft²)***
Concurrent Clients : 512**
Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
Frequency : 2.4 GHz and 5 GHz
Signal Rate :
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
Transmission Power :
• CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
<28 dBm(5 GHz, EIRP)
Package Contents :
• EAP683 LR
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
