| TP-LINK TL-SL3452 48 10/100M RJ45 ports, 2 10/100/1000M RJ45 ports, 2 SFP expansion slots supporting
TP-LINK TL-SL3452 48 10/100M RJ45 ports, 2 10/100/1000M RJ45 ports, 2 SFP expansion slots supporting
เพิ่มเมื่อ: 2017-03-09 11:53:14.0
แก้ไขล่าสุด: 2019-05-06 17:19:59.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SL3452 48 10/100M RJ45 ports+ 4G Gigabit-Uplink Managed Switch, 48 10/100M RJ45 ports, 2 10/100/1000M RJ45 ports, 2 SFP expansion slots supporting MiniGBIC modules(สินค้ารับประกัน ตลอดอายุการใช้งาน)

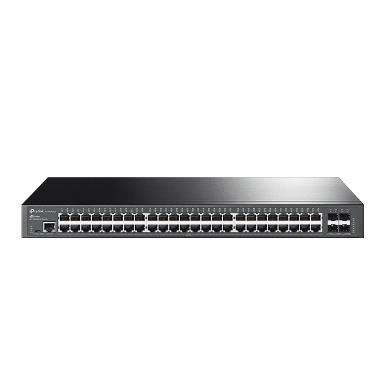

TP-LINK TL-SL3452
TL-SL3452 48 10/100M RJ45 ports+ 4G Gigabit-Uplink Managed Switch, 48 10/100M RJ45 ports, 2 10/100/1000M RJ45 ports, 2 SFP expansion slots supporting MiniGBIC modules
- 48x 10/100 Fast Ethernet Ports with 2x 10/100/1000 Gigabit and 2x SFP Ports.
- Enterprise features: IEEE 802.1d, 802.1x, 802.1Q, 802.1p, IGMP Snooping, SNMP and more.
- SNMP, Web-based, Telnet, Console management.
- SNMP, Web and Telnet/Console management.
- SNMPv1, SNMPv2c, SNMPv3.
- SNMP MIB-II, Ethernet-like MIB and Bridge MIB.
- RMON statistics, history, alarm and event group.
- Supports GARP and GVRP.
- IEEE 802.1X Port-Based Network Access Control protocol and connect to RADIUS.
- 52 Port-Based VLANs and 256 IEEE 802.1Q Tag VLANs.
- Supports IEEE 802.3ad port trunk with LACP.
- Supports Static MAC address and filtering MAC address management.
- Static Port Priority and IEEE 802.1p Priority, supports 4 Priority Queues and ingress policing.
- Supports the configuration function of Port Security, Broadcast Storm Control and Port Mirroring.
- Supports IEEE 802.1D Spanning Tree protocol.
- Supports non-head-of-line blocking forwarding.
- Supports IGMP Snooping function.
- Supports SNMP, Web-based, Telnet,Console management.
- Supports firmware upgrade, configuration backed up and restored.
- Rack-mountable steel case.
- Internal power supply.
Standards and Protocols
- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x, SNMP
Basic Function
- MAC Address Auto-Learning and Auto-aging
- Storm Control (Broadcast, Multicast, Unknown unicast)
- Port Mirroring
- IGMP Snooping
MAC Address Table
- 8k
Switching Capacity
- 17.6Gbps
Transmission Method
- Store-and-Forward
Priority
- Port based Priority
- IEEE 802.1p based Priority: 4 Queues
- IP DSCP based Priority
Link Aggregation
- IEEE 802.3ad LACP Link Aggregation
Spanning Tree
- IEEE 802.1d Spanning Tree
- IEEE 802.1s Multiple Spanning Tree
- IEEE 802.1w Rapid Spanning Tree
- BPDU Filtering
VLAN
- Port Based VLAN
- 802.1Q Tag-VLAN
- GARP/GVRP
Management Access Control
- Based on Port
- Based on MAC
- Based on IP
- Based on VLAN
- Based on LAG
Security & Authentication
- Port Security
- Static MAC Address Binding
- 802.1x port-based Access Control
- RADIUS
- TACACS+
Network Management
- Telnet, CLI/Console, SSH v1/v2
- Web (Http/Https), SSL
- SNMP v1/v2c/v3
- SNMP MIB-II, Ethernet-like MIB and Bridge MIB
- RMON statistics, history, alarm and event group
System Function
- Fixed IP Address Setting
- VCT (visual cable test )
- System Log
- Port Flow Statistics
- TFTP Upgrade
Ports
- 48 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- 2 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- 2 Gigabit SFP ports
- 1 RS232 Console port
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100¦¸ STP (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100¦¸ STP (maximum 100m)
- 1000BASE-X: MMF, SMF
LED Indicators
- Link/Act
- 10Mbps, 1000Mbps, SFP
- Else
- Power, System
Safety & Emission
- FCC, CE
Dimensions (WxDxH)
- 17.3x10.2x1.7 in. (440x260x44 mm)
Environment
- Operating Temperature:
- 0°C~40°C (32°F~104°F)
- Storage Temperature:
- -40°C~70°C (-40°F~158°F)
- Operating Humidity:
- 10%~90% non-condensing
- Storage Humidity:
- 5%~90% non-condensing
Power
- 100-240VAC, 50/60Hz
