TP-LINK TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
เพิ่มเมื่อ: 2022-11-10 16:00:14.0
แก้ไขล่าสุด: 2023-11-08 11:42:35.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+,2× Gigabit Non-PoE Ports, 2× Gigabit SFP Slots
TP-LINK TL-SG1428PE
TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+,2× Gigabit Non-PoE Ports, 2× Gigabit SFP Slots
- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
Specifications
Standards and Protocols :
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface :
- 26 10/100/1000 Mbps RJ45 Ports
- 2 Gigabit SFP Ports
Network Media :
-10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF

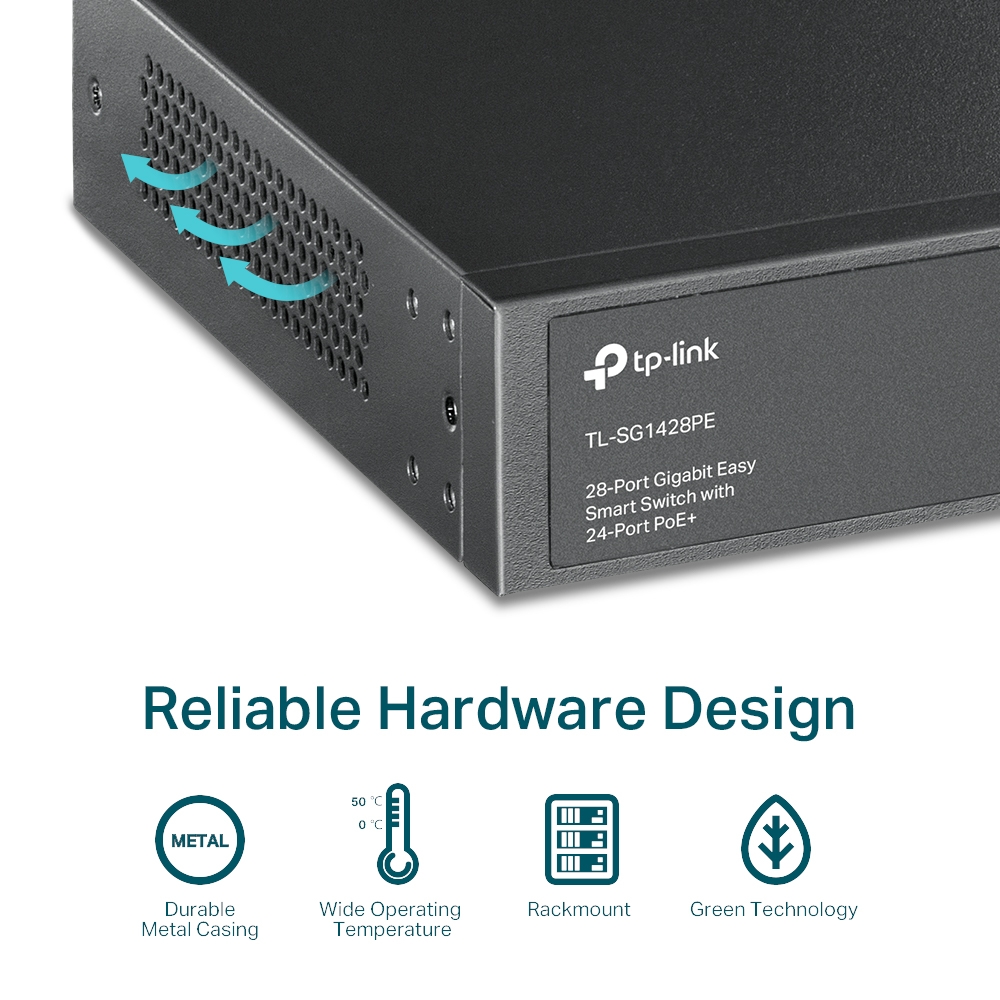

Fan Quantity : 2 Fans
Physical Security Lock : Yes

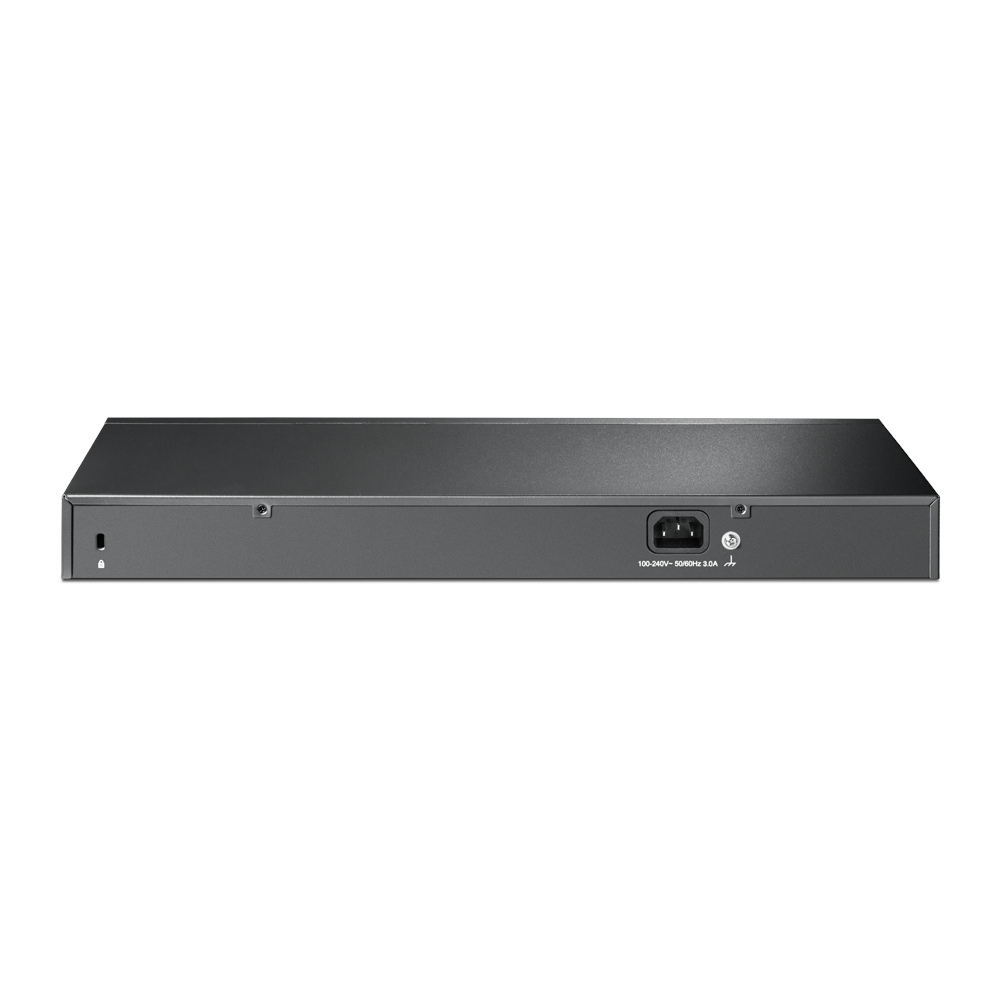

Power Supply : 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45) :
- Standard: 802.3at/802.3af compliant
- PoE+ Ports: 24 Ports
- Power Supply: 250 W
Dimensions ( W x D x H ) : 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting : Rack Mountable
Max Power Consumption :
- 27 W (220/50Hz. no PD connected)
- 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation :
- 92.07 BTU/h (no PD connected)
- 1039.03 BTU/h (with 250 W PD connected)
Switching Capacity : 56 Gbps
Packet Forwarding Rate : 41.7 Mbps
MAC Address Table : 8K
Packet Buffer Memory : 4.1 Mbit
Jumbo Frame : 9 KB
Package Contents :
- TL-SG1428PE
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
