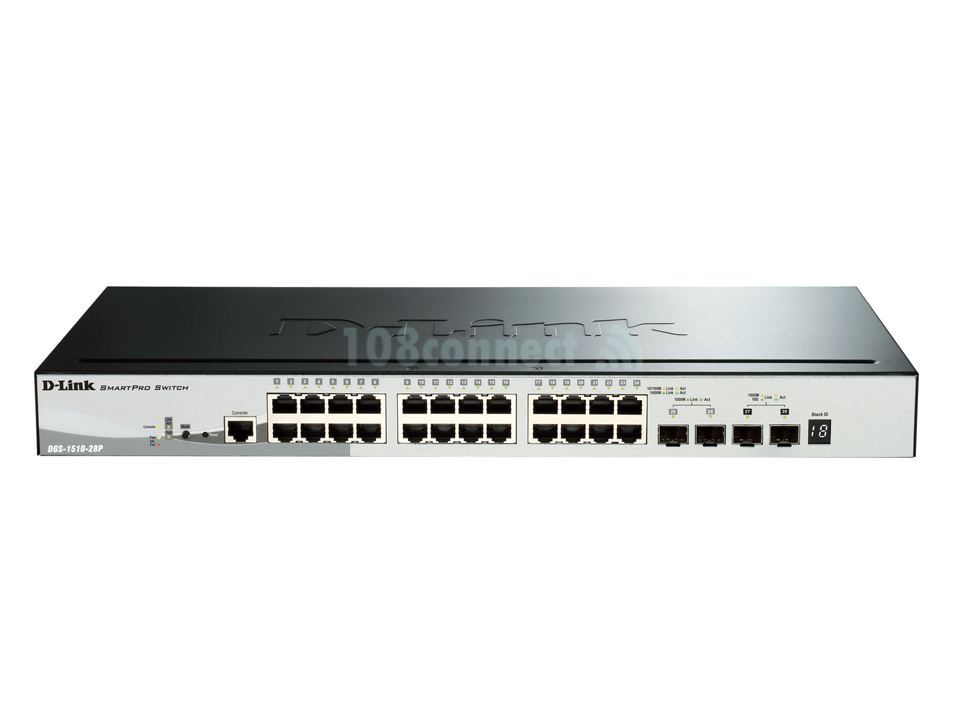

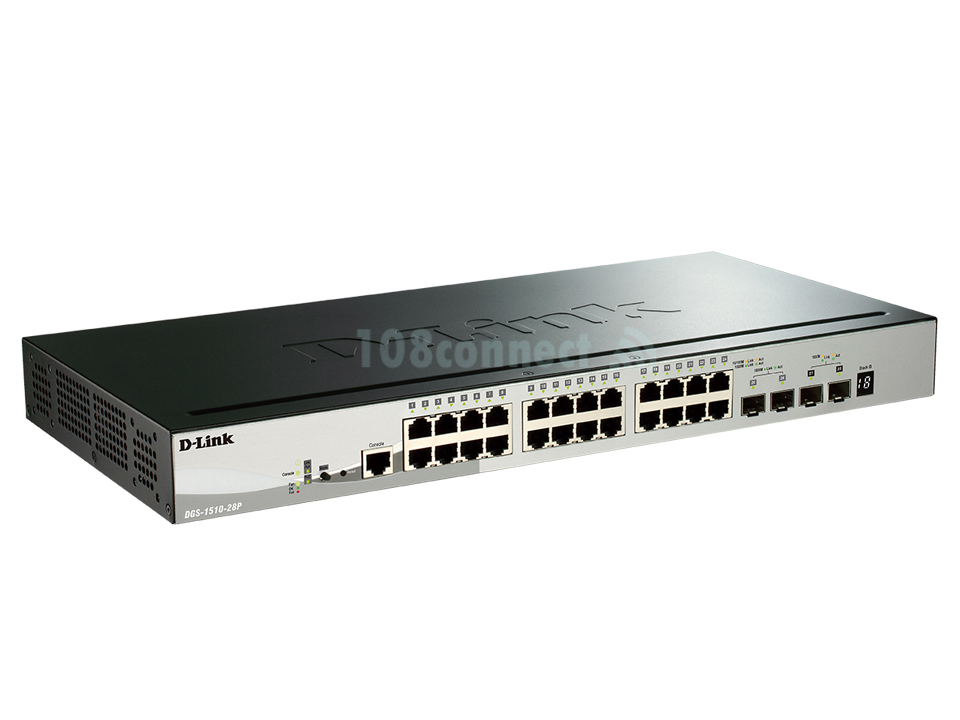

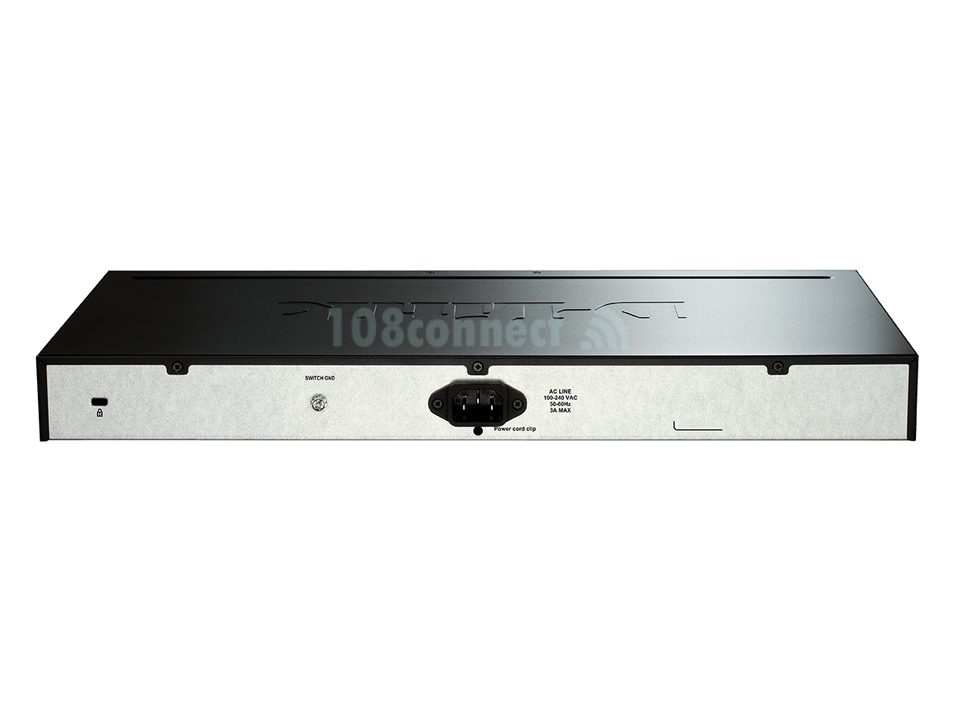

D-LINK DGS-1510-28P
DGS-1510-28P 24-port UTP802.3af PoE & 802.3at PoE+ 10/100/1000Mbps, 2-port Gigabit SFP, 2-port 10G SFP+ Smart Switch (Ports 1 to 24: Up to 30 W, Power Budget : 193 W, H/W : A1
- 24 Ports 10/100/1000 Base-T PoE + 2 SFP Ports + 2 x 10G SFP+ Slots
- Support IEEE 802.3af (PoE) and 802.3at (PoE+) Standard
- Physical Stacking via two 10 Gigabit SFP+ Ports with stacking up to six device
- Virtual stacking of up to 32 units via D-link’s Single IP Management (SIM)
- Support G.8032 ERPS to achieve high reliability and network stability
- Auto Surveillance (ASV), Auto Voice VLAN for VoIP and Video Surveillance deployments.
- 802.1X port based authentication, for authentication through external RADIUS servers
- IEEE 802.3az Energy Efficient Ethernet with D-Link Green 3.0 power-saving features
- Loopback Detection automatically disables port or VLAN when a loop is detected
- Support Layer 2 Features – IGMP & MLD Snooping, 802.3x Flow control and LLDP
Model Number
- DGS-1510-28P
Hardware Version
- A1
Size
- 19” standard rack width, 1U height
Interfaces
- 24 x 10/100/1000 Mbps PoE
- 2 x Gigabit SFP
- 2 x 10G SFP+
Port Standards & Functions
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- EEE 802.3ae 10 Gigabit Ethernet
- IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation
Network Cables
- UTP Cat. 5, Cat. 5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.
Duplex Mode
- Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed
Media Interface Exchange
- Auto or configurable MDI/MDIX
Switching Capacity
- 92 Gbps
Transmission Method
- Store-and-forward
MAC Address Table
- Up to 16,384 entries per device
MAC Address Update
- Up to 512 static MAC entries
- Enable/disable auto-learning of MAC addresses
Maximum Packet Forwarding Rate
- 68.45 Mpps
Packet Buffer Memory
- 1.5 MB per device
MTBF
- 275,428 hours
PoE Standard
- IEEE 802.3af/at
