Ubiquiti U-POE-AT 802.3at supported 30W POE Injector
เพิ่มเมื่อ: 2024-05-21 18:03:34.0
แก้ไขล่าสุด: 2024-05-21 18:03:49.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPOE Injector U-POE-AT 802.3at supported 30W (สินค้ารับประกัน 1 ปี)

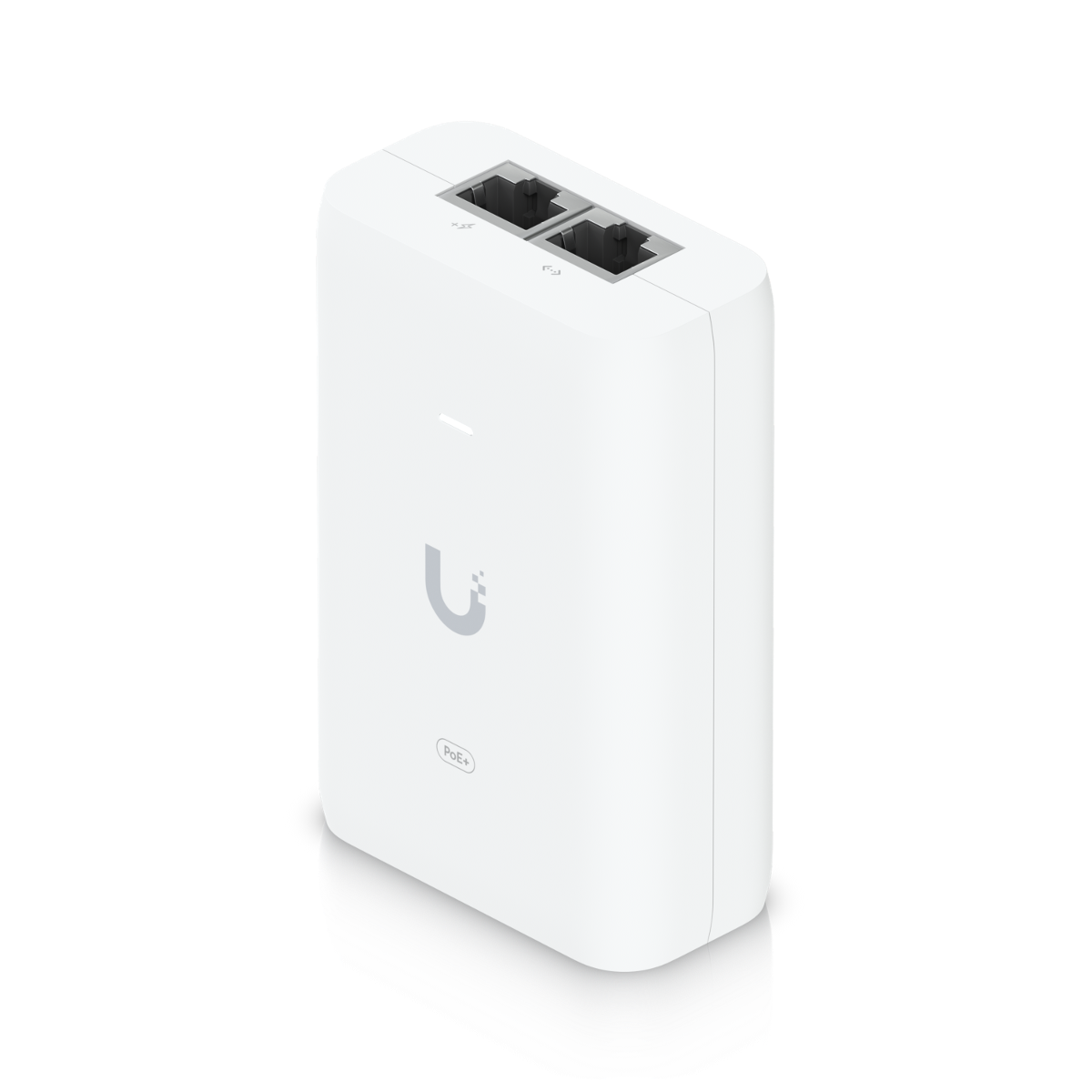

Ubiquiti U-POE-AT
POE Injector U-POE-AT 802.3at supported 30W
- Delivers up to 30W of PoE+
- Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
Compatibility
- U7-Pro
- U6-Enterprise
- U6-LR
- U6-Enterprise-IW
- U6-IW
- UTP-TouchMax
- UVC-AI-DSLR
- UVC-AI-Pro
Specifications
Model : U-POE-at
Dimensions : 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight : 156 g (5.5 oz)
Output voltage : 48V DC @ 0.65A
LAN activity indicator : No
Gigabit LAN port : Yes
Remote reset capability : No
Reset button : No
Rated voltage : 100—240V AC @ 50/60Hz
Input current : 0.75A Max.
Inrush current : <100A peak at 26_
Efficiency : 87%
Output ripple : 1% max.
Switching frequency : 70 kHz max.
Line regulation : ≤ 3%
Load regulation : ≤ 5%
2-pair powering : Pins 4, 5 (+) and 7, 8 (-)
4-pair powering : No
AC connector : IEC-320 C6
Data In / PoE : RJ45 shielded socket
Surge protection : Difference and common mode
Clamping protection : 11V data, 60V power
Max. surge discharge : 1500A (8/20 μs) power
Peak pulse current : 36A (10/1000 μs) data
Shunt capacitance : <5 pF data
Response time : <1 ns
Ambient operating temperature : 0 to 40° C (32 to 104° F)
Storage temperature : -30 to 70°C (-22 to 158° F)
Ambient operating humidity : 10 to 95% noncondensing
Certificati ons : CE, FCC, IC, UL
