EnGenius EXT1106 Cloud Managed 5-Port Gigabit Switch Extender and 1 SFP slot
เพิ่มเมื่อ: 2025-01-23 13:03:09.0
แก้ไขล่าสุด: 2025-01-23 13:03:29.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSwitch Extender EnGenius EXT1106 Cloud Managed 5-Port Gigabit Switch Extender and 1 SFP slot
EnGenius EXT1106
Switch Extender EnGenius EXT1106 Cloud Managed 5-Port Gigabit Switch Extender and 1 SFP slot

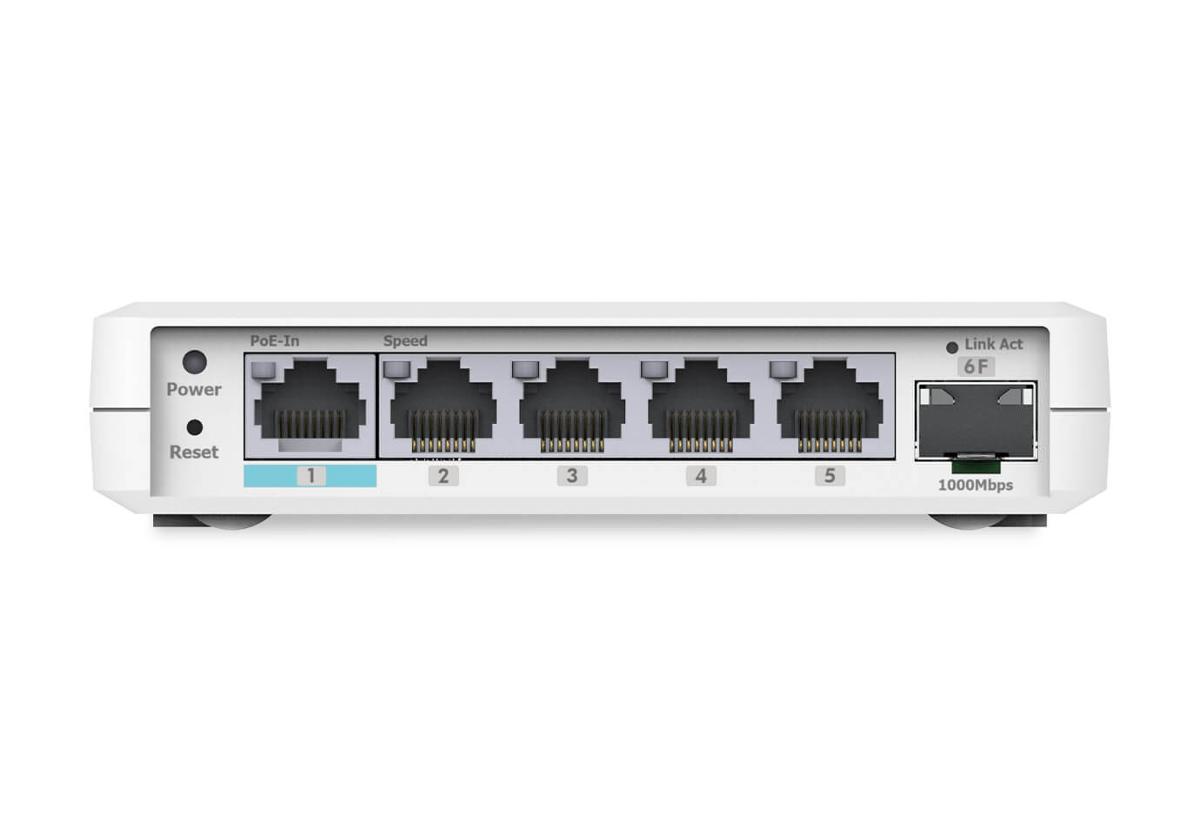

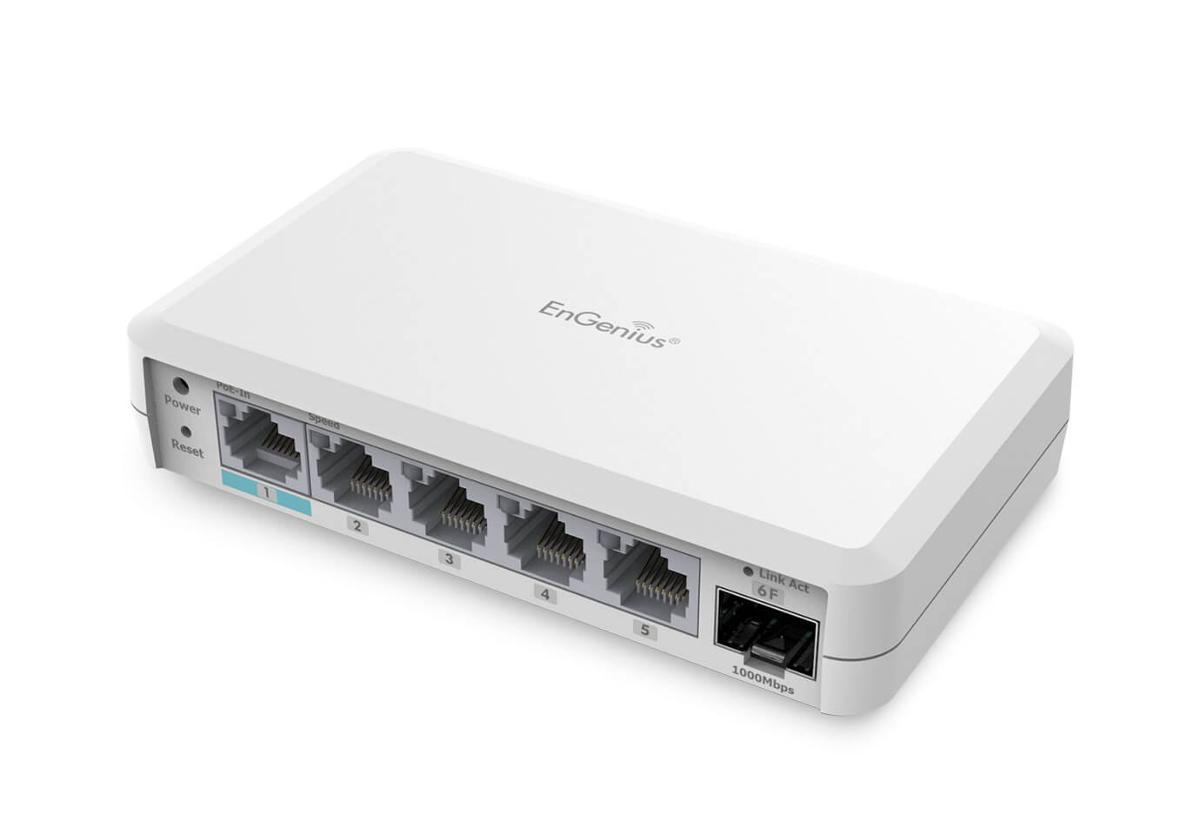

The EnGenius EXT1106 Switch Extender, with 4x GE Ports, 1x GE PD, and 1x SFP, excels in diversifying network expansion. Its SFP interface extends data transmission beyond the traditional 100-meter RJ45 limit, ensuring robust network performance. This compact switch extender offers flexibility with PoE and Type-C power options, suitable for commercial and residential environments.
- 1x GE PoE port deliver power to other PD devices.
- 4x GE ports for high-speed connections.
- 1x SFP uplink port for bandwidth-intensive applications.
- Zero touch provisioning, centralized cloud configuration and visualized monitoring improve the efficiency of network installation and management.
- Voice VLAN function ensure the security and quality of VoIP traffic.
- Cloud manage switch extenders from anywhere with the EnGenius Cloud App. A Pro license for Cloud To-Go offers more features to fulfill advanced management requirements.
- EnGenius FitXpress (cloud-managed) is a cost-effective management option for Switch Extender series products.
Technical Specifications
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Network Port – Gigabit Ethernet Ports
5×10/100/1000 Mbps Ports
Network Port – SFP Ports
1x SFP Port
Switching Capacity
12Gbps
Flash Memory
32 MB
Power Source
PoE PD,
Recommend EnGenius PoE adapters (EPA5006GP, EPA5006GAT)

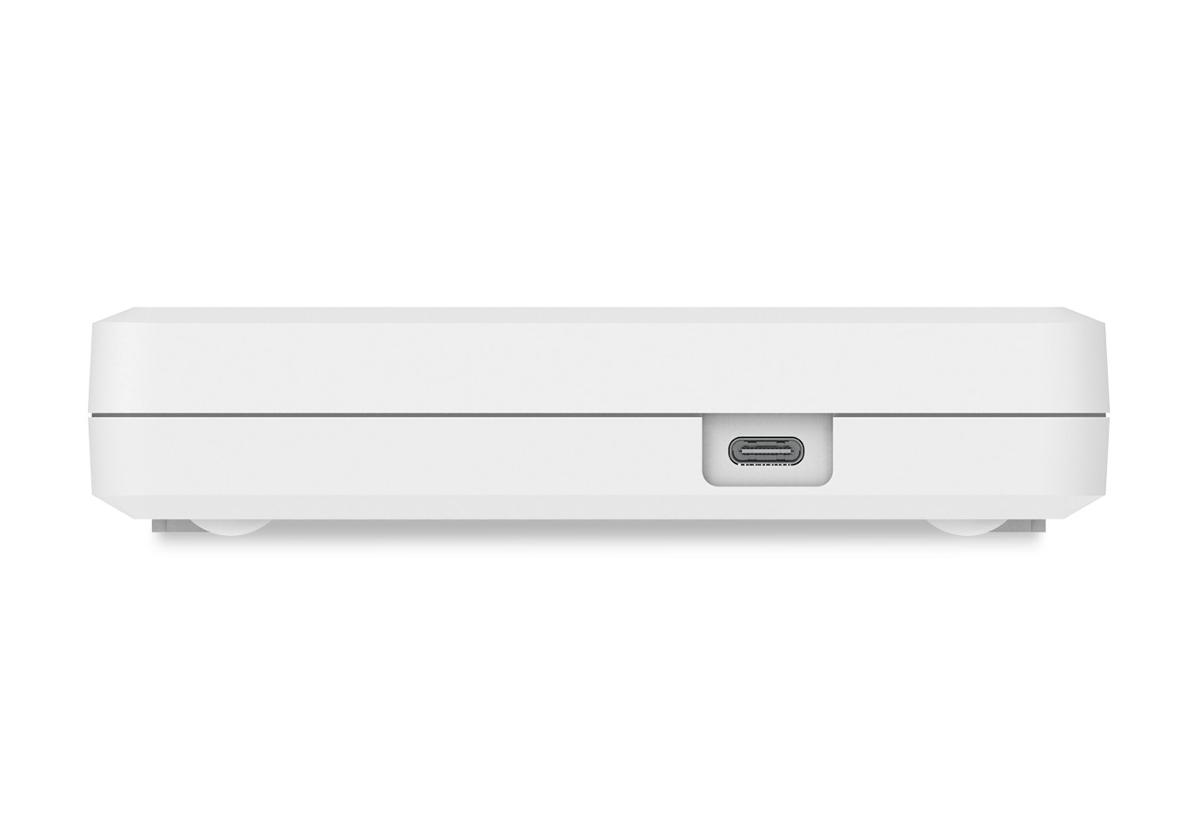

Type-C (100 to 240 VAC, 50/60Hz)
Physical Interface
System Indicators
Power LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
Link/Activity (per SFP Slot)
L2 Features
Network Management
EnGenius Cloud
MAC Address Table
8k
Jumbo frame size
10k
Multicast Group
Max 8 groups
QoS-number of Priority Queues Supported
8
QoS Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Web Graphical User Interface (GUI)
LSP(Local status page)
System Time
Time Setting/Daylight saving
Common L2 Features
802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filitering
IGMP Snooping
IGMPv2
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue(WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Dimensions & Weight
Device Dimensions & Weights
Weight: 124G
Length: 4.92” (125 mm)/br> Width: 2.09” (73.9 mm)/br> Height: 1.10” (28 mm)
Package Contents
1x EXT Switch Extender/br> 1x Product Card/br> 1x Wall Mount Kit/br> 1xPower Adapter
