TP-LINK ER706W
ER706W Omada AX3000 Gigabit VPN Router, 1× Gigabit SFP WAN/LAN Port, 1× Gigabit WAN Port, 4× Gigabit WAN/LAN Ports, 1× USB 3.0
AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

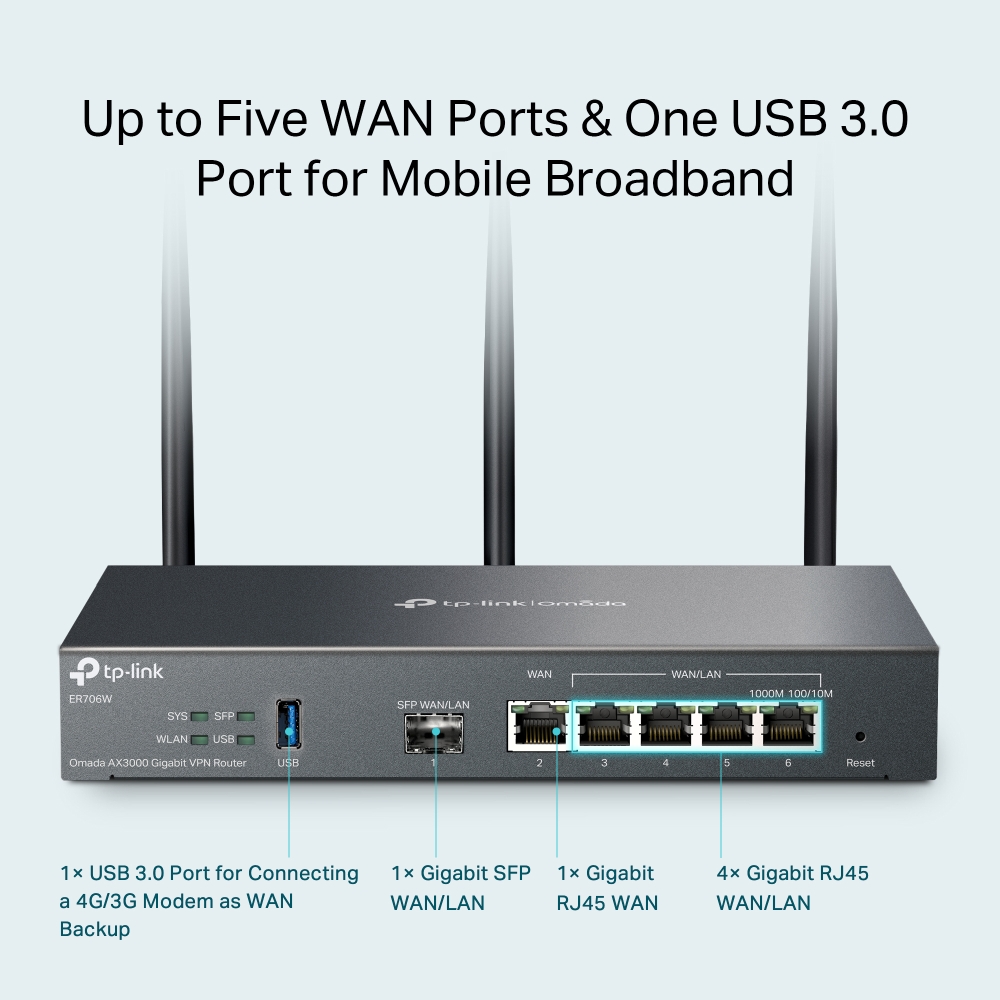

Interface :
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage)
Button :
• Reset Button
Power Supply :
• 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate :
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash :
• 128 MB NAND
DRAM :
• 512 MB DDR4
Dimensions ( W x D x H ) :
• 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna :
• 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting :
• Desktop/Wall-mounting
Max Power Consumption :
• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
|
|
|
|
