TP-LINK ER605
ER605 SafeStream™ Gigabit Multi-WAN VPN Router, 1× Gigabit WAN Port + 3× Gigabit WAN/LAN Ports + 1× Gigabit LAN Port
Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
Five Gigabit Ports : High-speed wired connectivity.

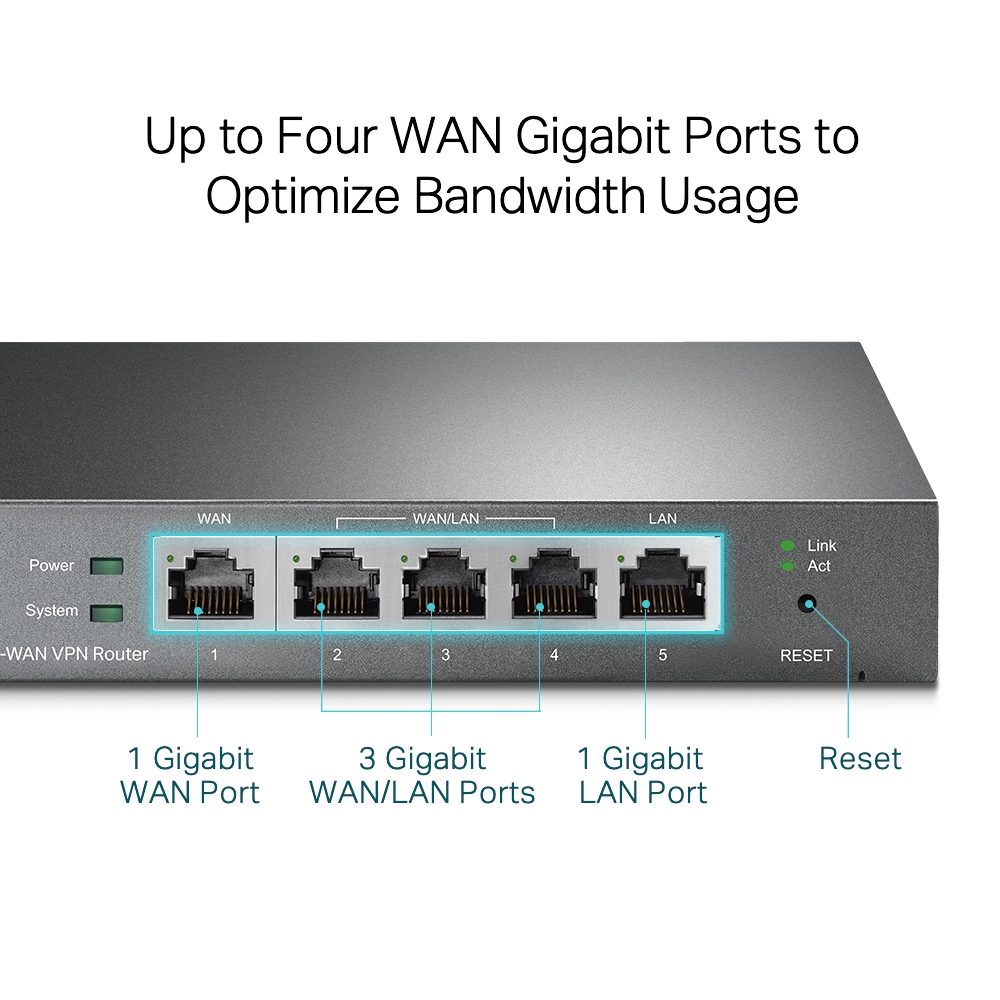

Up to 4 WAN Ports : 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN : Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
Abundant Security Features : Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Standards and Protocols :
- IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface :
- 1 Fixed Gigabit WAN Port
- 1 Fixed Gigabit LAN Port
- 3 Changeable Gigabit WAN/LAN Ports
Network Media :
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply :
- External 9V/0.85A DC Adapter
Flash :
- SPI 16MB
DRAM :
- 128 MB
LED :
- PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) :
- 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Concurrent Session :
- 25,000
IPsec VPN Throughput :
- 41.5 Mbps
|
|
|
|
