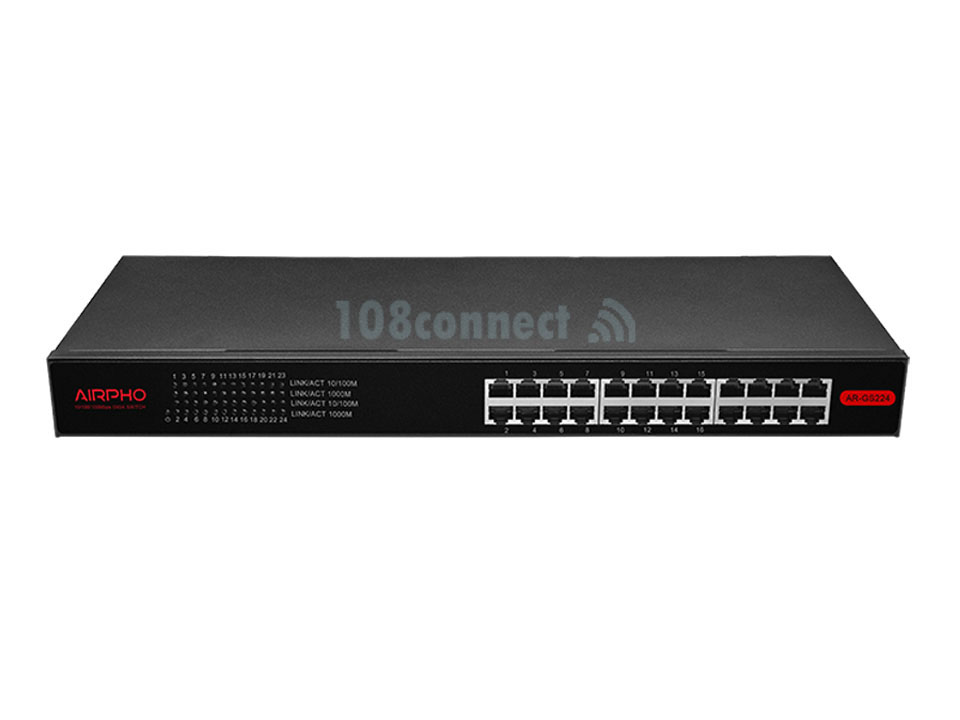

AIRPHO AR-GS224 24-port Gigabit Rackmount Switch

 เพิ่มเมื่อ: 2019-10-09 15:26:02.0
 แก้ไขล่าสุด: 2023-11-16 11:41:47.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
AR-GS224 24-port Gigabit Rackmount Switch 24 10/100/1000Mbps RJ45 ports 19-inch rack mount (สินค้ารับประกันตลอดอายุการใช้งาน)
3490.00 บาท

ส่งอีเมลล์ให้เพื่อน

 AIRPHO AR-GS224

AR-GS224 24-port Gigabit Rackmount Switch 24 10/100/1000Mbps RJ45 ports 19-inch rack mount

19-inch rack mount

The rack-mount design allows the switch to be easily installed on an industry-standard-sized rack, which saves you a tremendous amount of space. The ability to keep it inside a cabinet protects the switch from pests, dust, climates, accidents and much more.
Auto-MDI/MDIX Port
The auto MDI/MDIX feature makes it possible to automatically correct errors in cable selection，making the distinction between a "straight through" cable and a "crossover" cable unimportant.
24 10/100/1000Mbps RJ45 ports
Provides up to 24 auto-sensing 10/100/1000Mbps Gigabit Ethernet ports (10 times faster than standard Fast Ethernet ports) with a non-blocking switching architecture for maximum throughput at wire speed.
Easy Use & Installation
The auto features of this desktop switch make installation plug and play and hassle-free. It can detect and configure devices automatically, without requiring the user to physically configure the devices.
Energy Efficient Design
This AR-GS224 features the latest innovative energy-efficient technologies, which can greatly expand your network capacity with much less power. It can automatically adjust your power consumption according to the link status and cable length to limit the carbon footprint of your network. Most affordable connectivity
to your network.



General

Standards

- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Protocol

- CSMA/CD

Data Rate

- Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex)

- Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex)

- Gigabit Ethernet: 2000Mbps (Full Duplex)

Topology

- Star

Performance

Transmission Method

- Store-and-Forward

MAC Address Table

- 16K entries per device

Forwarding Rate

- Full wire speed

MAC Address Learning

- Self-learning, auto-aging

Hardware

Interfaces

- Twenty-four 10/100/1000Base-TX Ports

AC Power Supply

- Rated voltage: 100-240 V, 50/60 Hz

- Maximum voltage: 90-264 V, 50/60 Hz

Fan

- A Built-in 40 mm x 40 mm x 20mm Fan

Power Supply

- External Power Adapter

(Input: AC 100-240V, 50/60Hz, Output: DC 5V 0.5A)

Dimensions (W x D x H)

- 19 Inch, 1U rack-mount size

Weight

- 2.5kg

Environment

Operating Temperature

- 0°C~40°C (32°F~104°F)

Storage Temperature

- -40°C~70°C (-40°F~158°F)

Relative Humidity

- 10%~90%, non-condensing

Storage Humidity

- 5%~90%, non-condensing

Certifications

- CE, RoHS
