| Mikrotik RB5009UPr+S+IN 7-Port Gigabit Ethernet + 1-Port SFP+ (1/10G) PoE Out Port 1-8 (802.3af/at)

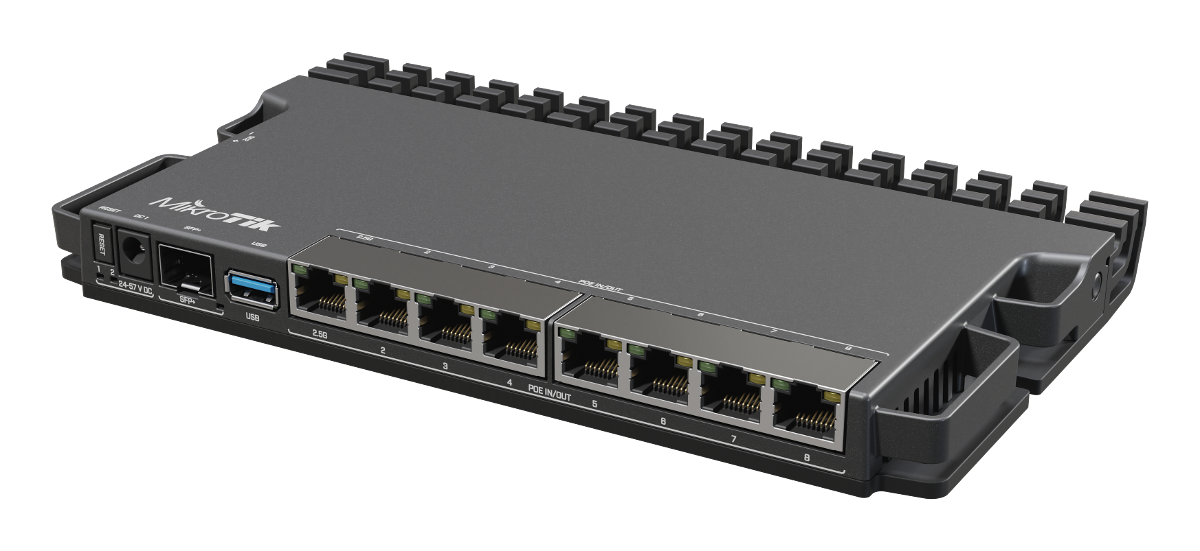

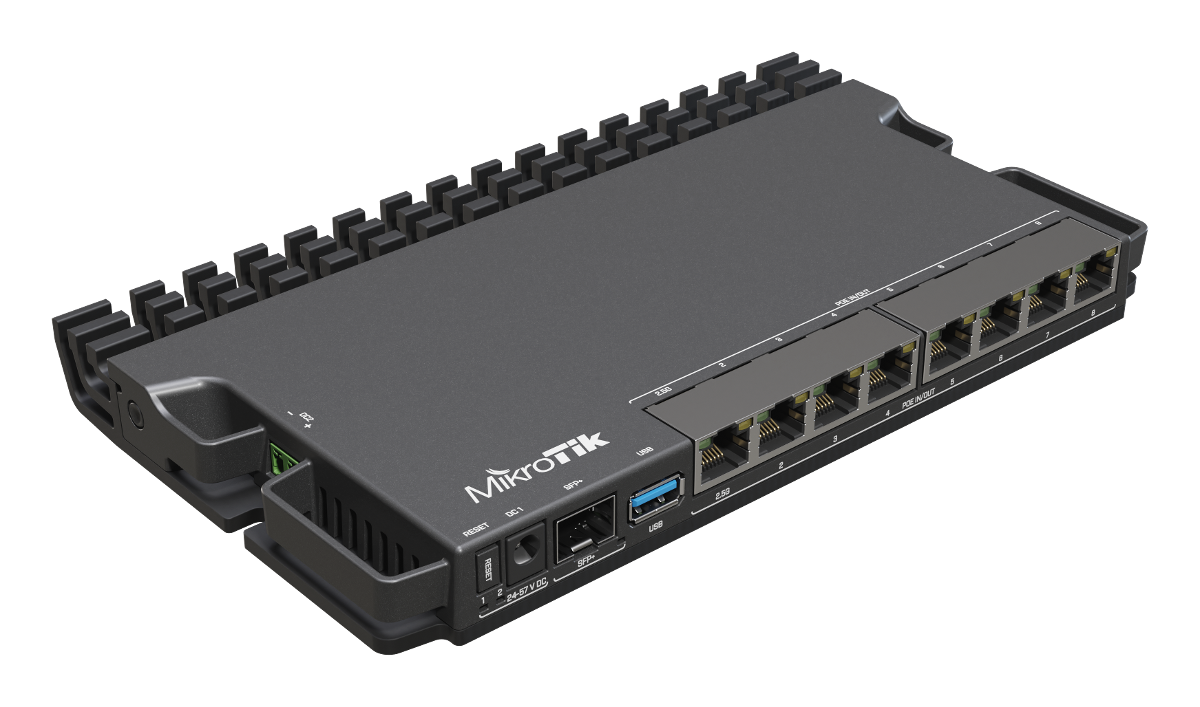

Mikrotik RB5009UPr+S+IN 7-Port Gigabit Ethernet + 1-Port SFP+ (1/10G) PoE Out Port 1-8 (802.3af/at)
เพิ่มเมื่อ: 2023-07-13 13:16:26.0
แก้ไขล่าสุด: 2023-11-24 13:54:31.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comเราเตอร์ Mikrotik รุ่น RB5009UPr+S+IN 1-Port 2.5Gigabit Ethernet + 7-Port Gigabit Ethernet + 1-Port SFP+ (1/10G) PoE Out Port 1-8 (802.3af/at) + 1 USB 3.0 type A
Mikrotik RB5009UPr+S+IN
RB5009UPr+S+IN 1-Port 2.5Gigabit Ethernet + 7-Port Gigabit Ethernet + 1-Port SFP+ (1/10G) PoE Out Port 1-8 (802.3af/at) + 1 USB 3.0 type A
This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market
Specifications
Product code : RB5009UPr+S+IN
Architecture : ARM 64bit
CPU : 88F7040
CPU core count : 4
CPU nominal frequency : 350-1400 (auto) MHz
Switch chip model : 88E6393
RouterOS license : 5
Operating System : RouterOS (v7 only)
Size of RAM : 1 GB
Storage size : 1 GB
Storage type : NAND
MTBF : Approximately 200'000 hours at 25C
Tested ambient temperature : -40°C to 60°C
IPsec hardware acceleration : Yes
Number of DC inputs : 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage : 24-57 V
2-pin terminal input Voltage : 24-57 V
Max power consumption : 150 W
Max power consumption without attachments : 15 W
Cooling type : Passive
PoE in : 802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage : 24-57 V
PoE-out ports : Ether1-Ether8
PoE out : 802.3af/at
Max out per port output (input 18-30 V) : 640 mA
Max out per port output (input 30-57 V) : 420 mA
Max total out (A) : 2.59 A
Total output current : 2.28
Total output power : 130
10/100/1000 Ethernet ports : 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) : 7
Number of 2.5G Ethernet ports : 1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) : 1
SFP+ ports : 1
Number of USB ports : 1
USB Power Reset : Yes
USB slot type : USB 3.0 type A
Max USB current (A) : 1.5
