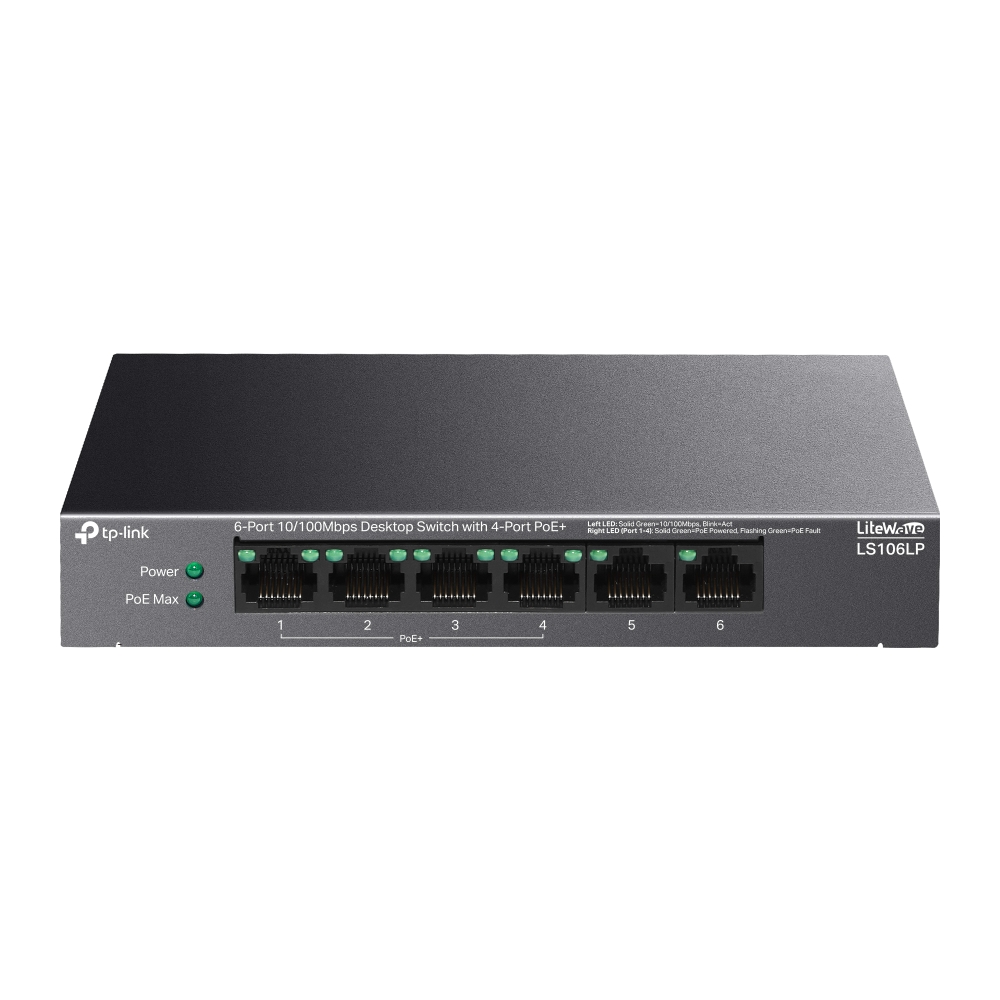

TP-LINK LS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
เพิ่มเมื่อ: 2025-07-14 14:46:36.0
แก้ไขล่าสุด: 2025-07-14 14:51:40.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSwitch (สวิตซ์) TP-LINK 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
TP-LINK LS106LP
Switch (สวิตซ์) TP-LINK 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 41 W total PoE budget*
- Up to 250m data and power transmitting range under Extend Mode**
- Automatically reboots your dropped or unresponsive PoE-powered devices.
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Desktop / Wall-mounting
Interface :
• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Installation :
• Desktop

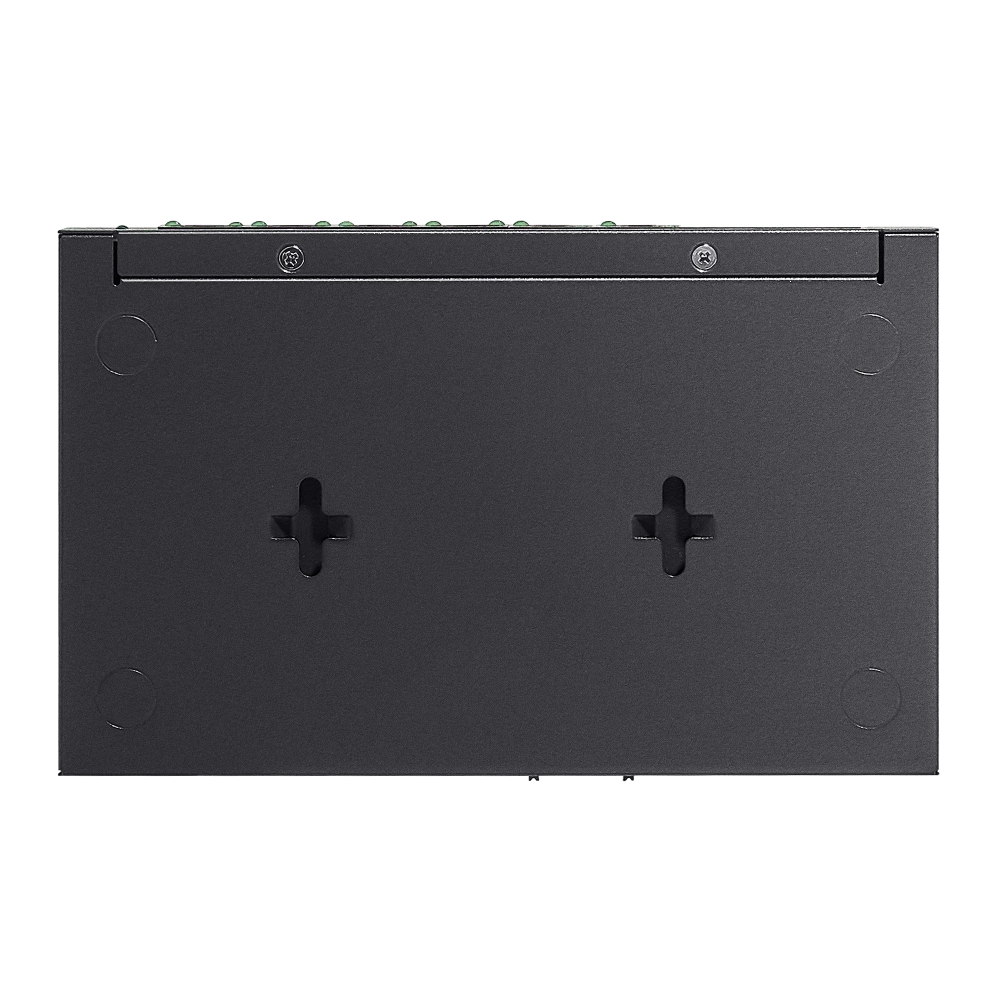

• Wall Mounting

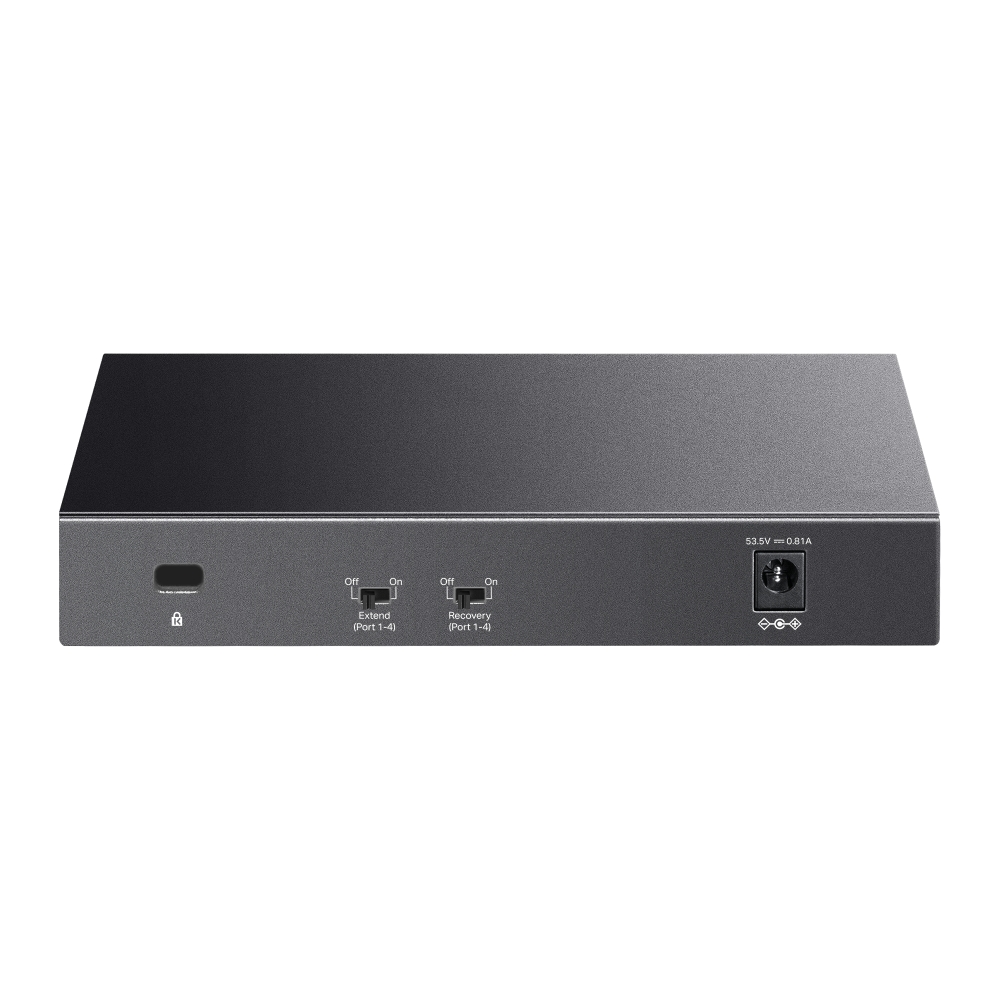

Power Supply : External Power Adapter (Output: 53.5VDC / 0.81A)
LED :
• Power
• Link/Act
• PoE Status
• PoE MAX
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4, up to 30 W PoE output per port
• Power Supply: 41 W
Dimensions ( W x D x H ) : 6.2×4.0×1.0 in (158×101×25 mm)
Max. Power Consumption :
• 2.53 W (220 V/50 Hz no PD connected)
• 47.76 W (220 V/50 Hz with 41 W PD connected)
Max. Heat Dissipation :
• 8.61 BTU/h (220 V/50 Hz no PD connected)
• 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
Switching Capacity : 1.2 Gbps
Packet Forwarding Rate : 0.8928 Mpps
MAC Address Table : 2K
Jumbo Frame : 2 KB
Advanced Features :
• Extend Mode: Ports 1–4
• PoE Auto Recovery: Ports 1-4
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
Transmission Method : Store and Forward
Certification : CE, FCC, RoHS
Package Content :
• LS106LP
• Power Adapter
• Installation Guide
Environment :
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
