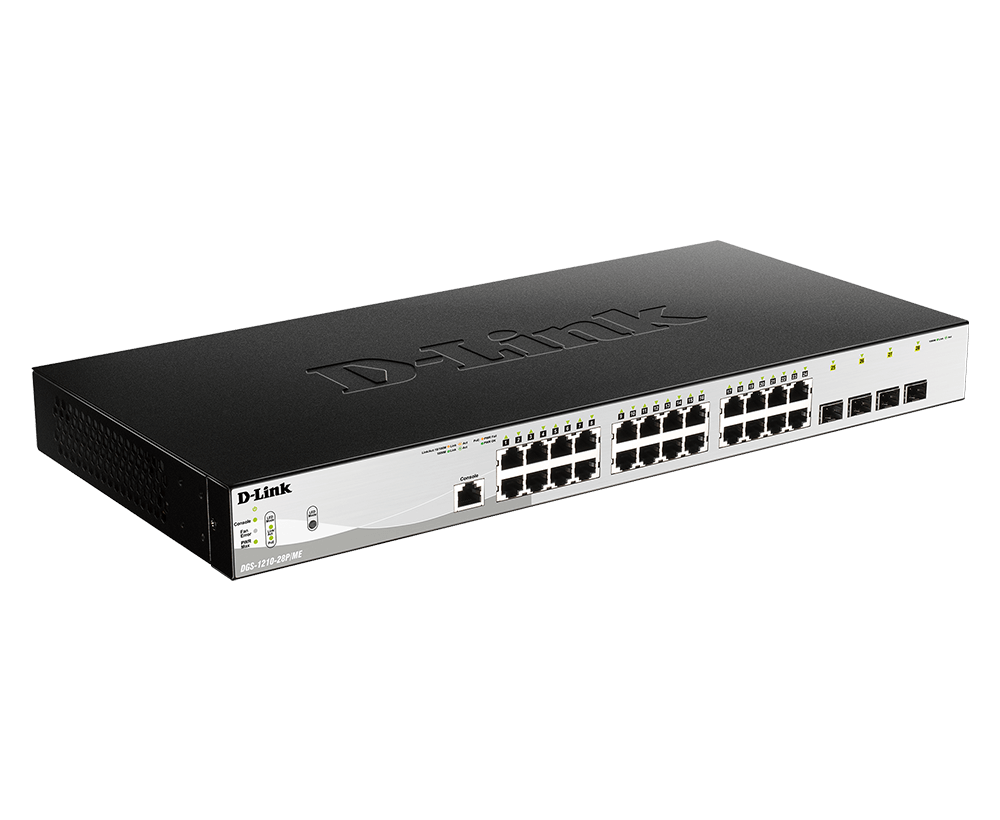

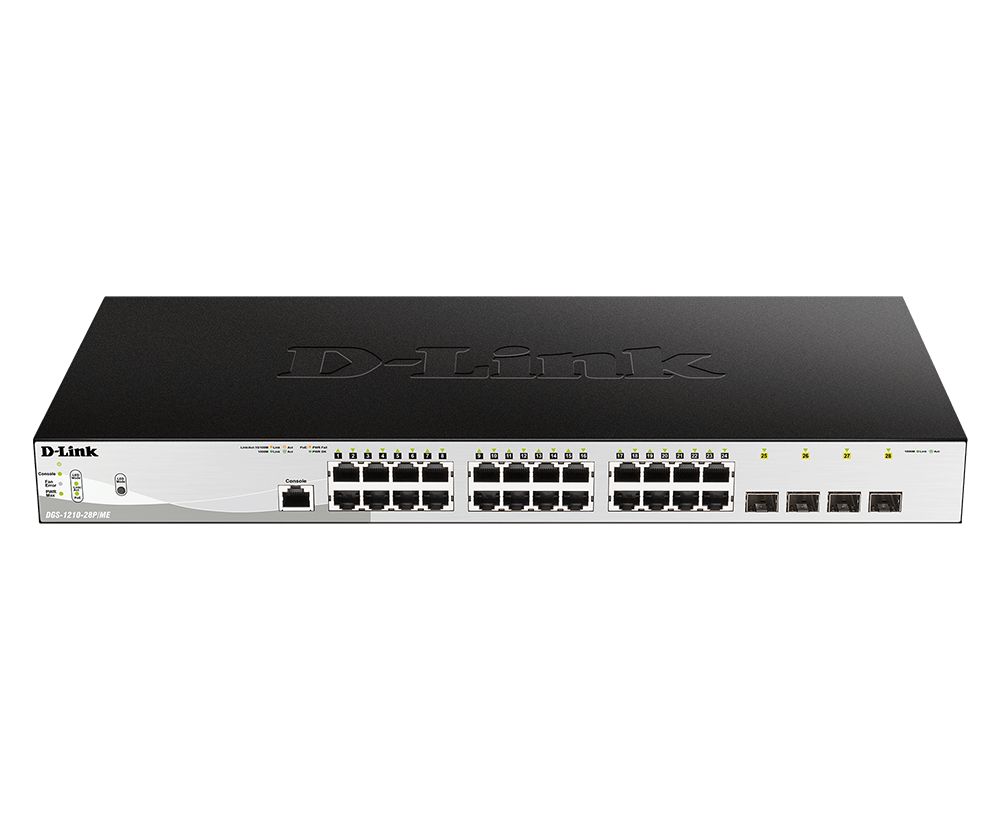

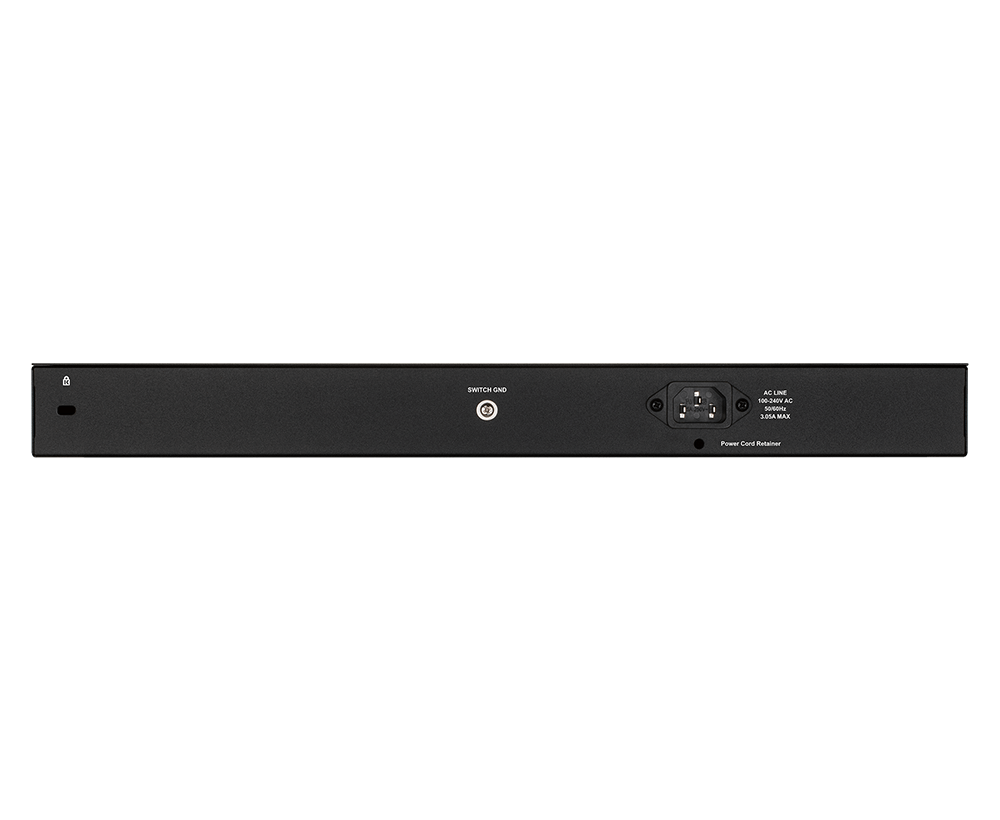

D-LINK DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch
เพิ่มเมื่อ: 2023-08-17 13:55:34.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.com
รายละเอียด:
DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch
DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch
26900.00 บาท
D-LINK DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch
DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch
- 24 x 10/100/1000BASE-T PoE ports
- 4 x SFP ports
- Supports 802.3at Power over Ethernet
- Comprehensive Layer 2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6 kV surge protection, sub-50 ms recovery ERPS, and Dying Gasp provide optimal reliability
Specifications
- 1000Base-T PoE Interface 24
- 1000M SFP Interface 4
- Console Port Yes
- 10/100/1000BASE-T PoE ports 24
- SFP ports 4
- Switch Capacity 56 Gbps
- Max. Packet Forwarding Rate 41.7 Mpps
- Store & Forwarding Forwading Yes
- Dimension 440mm x 210 mm x 44mm
- Storage Temperature -20-70°C
- Weight 3.34 kg
- Operation Temperature -5 - 50°C
- Operation Humidity 0% - 95% RH
- Storage Humidity 0% ~ 95% RH
- Operating Altitude 1500 meters
- Maximum Power Consumption 251.5 W (PoE on)<br>28.7 W (PoE off)
- Standby Power Consumption 18.4 W/100V, 16.1 W/240V
- Maximum Heat Dissipation 857.98 BTU/hr
- MTBF 331,699 hours
- Power Input 100-240 VAC
- CPU Speed 400MHz
- DRAM Size 256MB
- Flash Memory Size 32MB
- Packet Buffer Size 1.5MB
- FAN Yes
- Comply with RoHS 6 Yes
- Energy Efficiency Ethernet (EEE) Yes
- Power Saving By Link Status Yes
- Power Saving By LED Shut-Off Yes
- Power Saving By Port Shut-Off Yes
- Power Saving By System Hibernation Yes
- Time-based PoE Yes
- MAC Address Table Size 16K
- Maximum PoE Budget 193W
- PoE Budget 193 W
- 802.3x Flow Control Yes
- Head-of-line (HOL) Blocking Prevention Yes
- 802.1D Spanning Tree (STP) Yes
- 802.1w Rapid Spanning Tree (RSTP) Yes
- 802.1s Multiple Spanning Tree (MSTP) Yes
- BPDU Filtering Yes
- Root Restriction Yes
- G.8032 ERPS Yes
- 802.1AX Link Aggregation Yes
- 802.3ad Link Aggregation Yes
- Link Aggregation Group Per Device 8
- Max Port Per Link Aggregation Group 8
- Port Mirroring Yes
- Flow-based (ACL) mirroring Yes
- Jumbo Frame 9,216 Bytes
- Loopback Detection (LBD) Yes
- L2 Protocol Tunneling Yes
- IGMP Snooping Yes
- Max IGMP Snooping Groups 1024
- IGMP Snooping Fast Leave Yes
- IGMP Authentication Yes
- IGMP Accounting Yes
- MLD Snooping Yes
- MLD Snooping Groups Yes
- MLD Snooping Fast Leave Yes
- 802.1Q VLAN Yes
- VLAN Groups Yes
- Port-based VLAN Yes
- 802.1v Protocol-based VLAN Yes
- MAC-based VLAN Yes
- GVRP Yes
- Double VLAN (Q in Q) Yes
- VLAN Translation Yes
- ISM VLAN (Multicast VLAN) Yes
- Asymmetric VLAN Yes
- Private VLAN Yes
- VLAN trunking Yes
- IP Interface Yes
- Max Number of IP Interface 4
- ARP Yes
- ARP Entries Yes
- Gratuitous ARP Yes
- ND Entries Yes
- Default Route Yes
- Static Route Yes
- Limited IP Multicast (IGMP Filtering) Yes
- Number of Queue Yes
- Class of Service (CoS) Yes
- Two Rate Three Color Marker (trTCM) Yes
- Remark 802.1p priority Yes
- Remark ToS/DSCP Yes
- Rate Limiting Yes
- Queue Handling Yes
- Strict Priority Queue (SPQ) Yes
- Weighted Round Robin (WRR) Yes
- Simple Random Early Detection (SRED) Yes
- Port-based Bandwidth Control Yes
- Flow-based bandwidth Control Yes
- Queue-based Bandwidth Control Yes
- Max Access Control List (ACL) Entries Yes
- MAC Access List Yes
- IP Access List Yes
- IPv6 Access List Yes
- User-defined Access List Yes
- Time based ACL Yes
- CPU Interface Filtering Yes
- SSH Yes
- SSL Yes
- Port Security Yes
- Broadcast/Multicast/Unicast Storm Control Yes
- Traffic Segmentation Yes
- IP-MAC-Port Binding (IMPB) Yes
- DHCP Snooping Yes
- IPv6 Snooping Yes
- IPv6 ND Inspection Yes
- Duplicate Address Detection (DAD) Yes
- D-Link Safeguard Engine Yes
- DHCP Server Screening Yes
- DHCP Client Filtering Yes
- BPDU Attack Protection Yes
- DoS Attack Prevention Yes
- 802.1X Yes
- Port based 802.1X Authentication Yes
- Host based 802.1X Authentication Yes
- MAC-based Access Control (MAC) Yes
- Host based MAC Authentication Yes
- Guest VLAN Yes
- Microsoft® NAP Support Yes
- Privilege Level for Management Access Yes
- RADIUS Yes
- RADIUS Accounting Yes
- TACACS+ Yes
- TACACS+ Accounting Yes
- Trusted Host Yes
- Cable Diagnostics Yes
- 802.3ah Ethernet Link OAM Yes
- D-link Unidirectional Link Detection (DULD) Yes
- Dying Gasp No, Yes
- 802.1ag Connectivity Fault Management (CFM) Yes
- Y.1731 OAM Yes
- Optical Transceiver Digital Diagnostic Monitoring (DDM) CLI
- Network Time Protocol (NTP) Yes
- Simple Network Time Protocol (SNTP) Yes
- Telnet Client Yes
- Telnet Server Yes
- Web-based GUI Yes
- SNMP Yes
- SNMP Trap Yes
- TFTP Client Yes
- SMTP YES
- System Log Yes
- FTP Client Yes
- LLDP Yes
- RMONv2 Yes
- RMONv1 Yes
- DHCP/BootP Client Yes
- D-Link Discover Protocol (DDP) Yes
- LLDP-MED Yes (for 28P/ME)
- DHCP Auto-image Yes
- DHCP Auto-configuration Yes
- Dual Images Yes
- PPPoE Circuit-ID Tag Insertion Yes
- DHCP relay Yes
- Editable Login Banner Yes
- Dual Configurations Yes
- Editable System Prompt Yes
- Password Encryption Yes
- Password Recovery Yes
- Debug Command Yes
- Ping Yes
- Traceroute Yes
- D-Link Network Assistant Yes
- Surge/Lightning Protection Yes
- Surge/Lightning Protection (All Ethernet Ports) Yes
- SSH Yes
- SSL Yes
