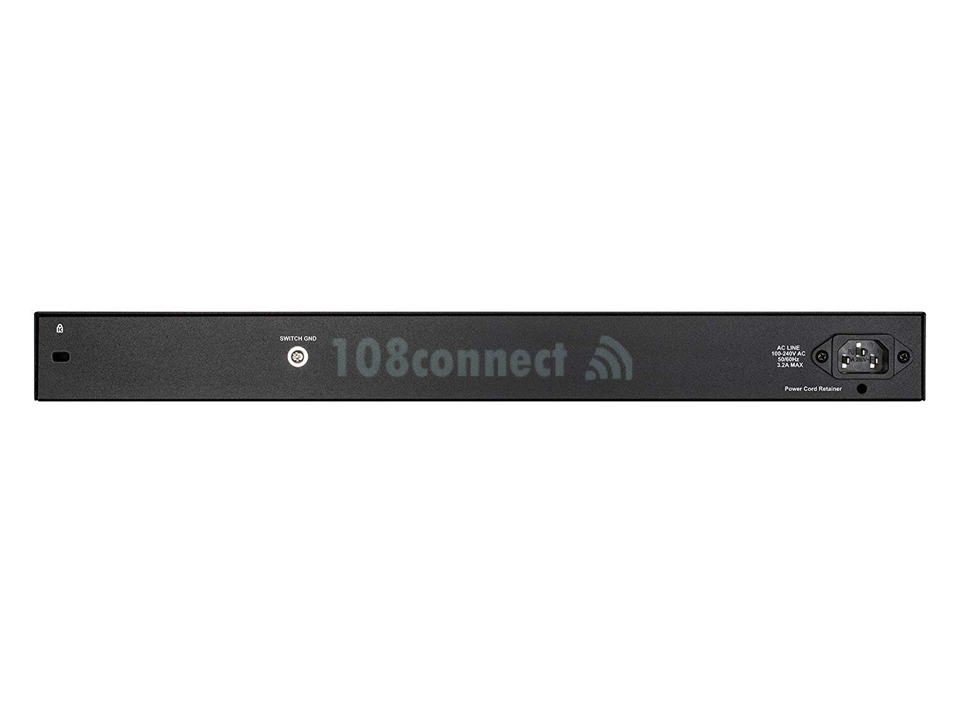

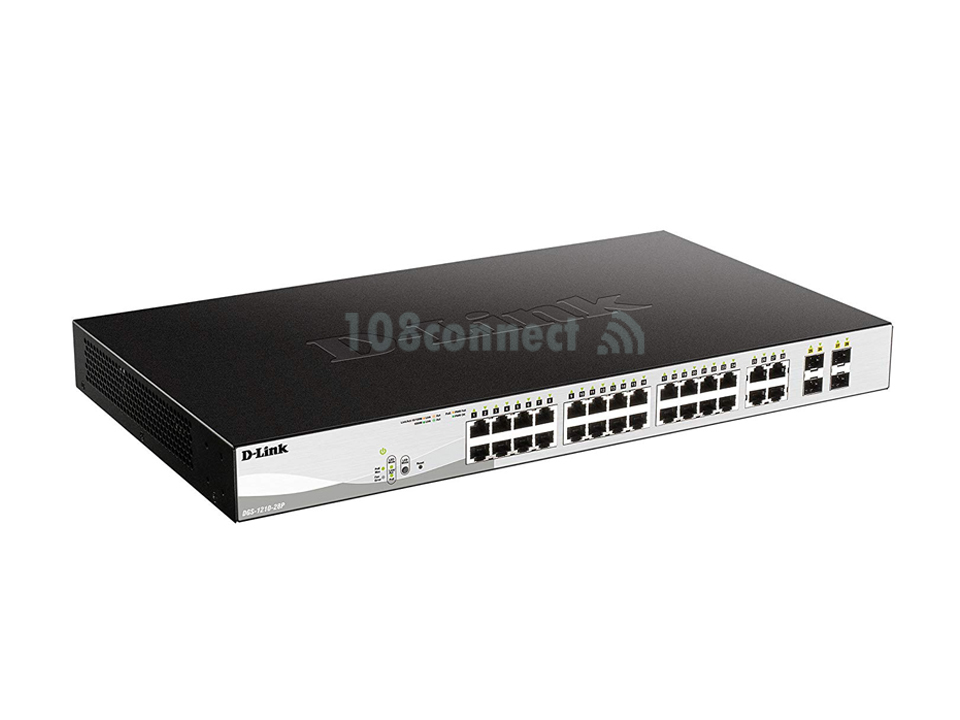

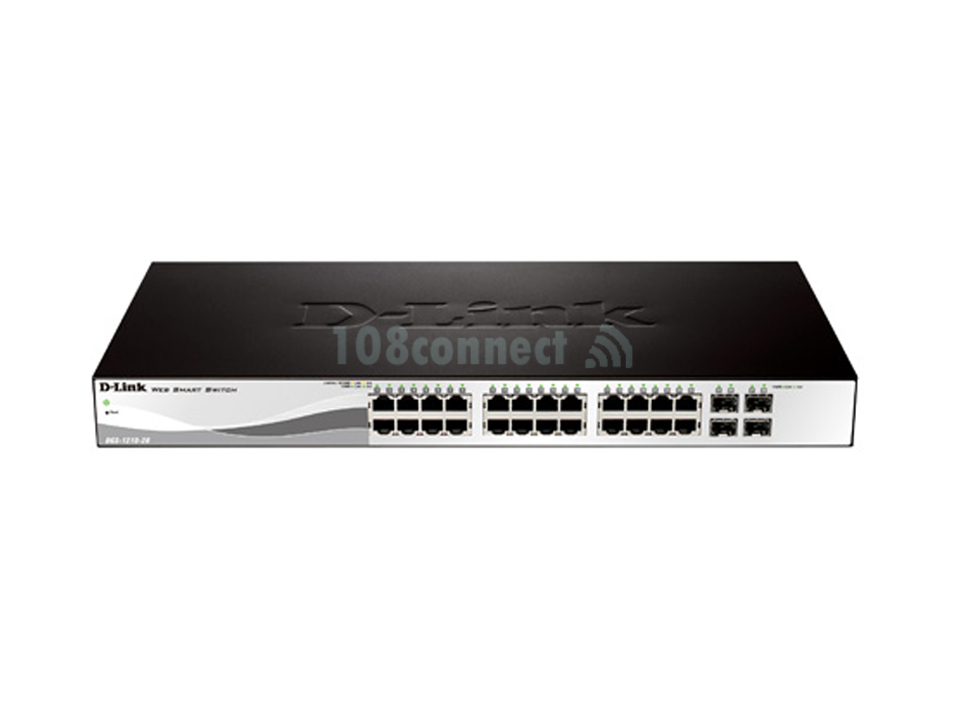

D-LINK DGS-1210-28 28-Port Layer 2 Smart Managed Gigabit Switch

จำนวนครั้งที่เปิดดูสินค้า : 4571 | ความคิดเห็น: 0

D-LINK DGS-1210-28 28-Port Layer 2 Smart Managed Gigabit Switch

เพิ่มเมื่อ: 2019-11-21 15:34:18.0

แก้ไขล่าสุด: 2023-08-05 15:27:53.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
DGS-1210-28 24-port UTP 10/100/1000Mbps, 4-port Gigabit SFP Smart Switch (H/W : C1, Rackmountable) (สินค้ารับประกันตลอดอายุการใช้งาน)

7590.00 บาท

D-LINK DGS-1210-28

DGS-1210-28 24-port UTP 10/100/1000Mbps, 4-port Gigabit SFP Smart Switch (H/W : C1, Rackmountable)

- 24 Port 10/100/1000 Base-T + 4 x Combo Gigabit UTP or Gigabit SFP slots

- Equipped with IEEE 802.3az Energy Efficient Ethernet (EEE) Complaint

- Support IEEE 802.1Q VLAN traffic segregation

- Access Control List (ACL) feature to enhances network security

- Auto Surveillance VLAN for easy integration with IP-based surveillance systems

- Loopback detection (LBD) and broadcast storm control to avoid network downtime

- Quality of Service (QOS) and bandwidth control to ensure smooth operation

- Support Web-based GUI, Smart Console , Network Assistance Utility

- Cable diagnostics function to help troubleshooting wiring problem

Model Number

- DGS-1210-28

Hardware Version

- F1

Model Number
- DGS-1210-28
Hardware Version
- F1
Interfaces
- 24 x 10/100/1000BASE-T
- 4 x 100/1000 Mbps GbE/SFP combo ports
Port Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
- IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3x Flow Control
Network Cables
- UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
- Full/Half-duplex for 10/100 Mbps
- Full-duplex for 1000 Mbps
Media Interface Exchange
- Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity
- 56 Gbps
Transmission Method
- Store-and-forward
MAC Address Table
- 8K entries
Static MAC Addresses
- 256 entries
Maximum 64 Byte Packet Forwarding Rate
- 41.7 Mpps
Packet Buffer Memory
- 4.1 Mbits
CPU Memory
- DDR3 128 MB
Flash Memory
- 32 MB
Power Input
- 100 to 240 V AC 50/60 Hz internal universal power supply
Maximum Power Consumption
- 17.32 W/100 V
- 16.94 W/240 V
Standby Power Consumption
- 6.49 W/100 V
- 6.55 W/240 V
Acoustics
- 0 dB(A)
BTU/hr (100V)
- 57.79 BTU/hr (240V)
