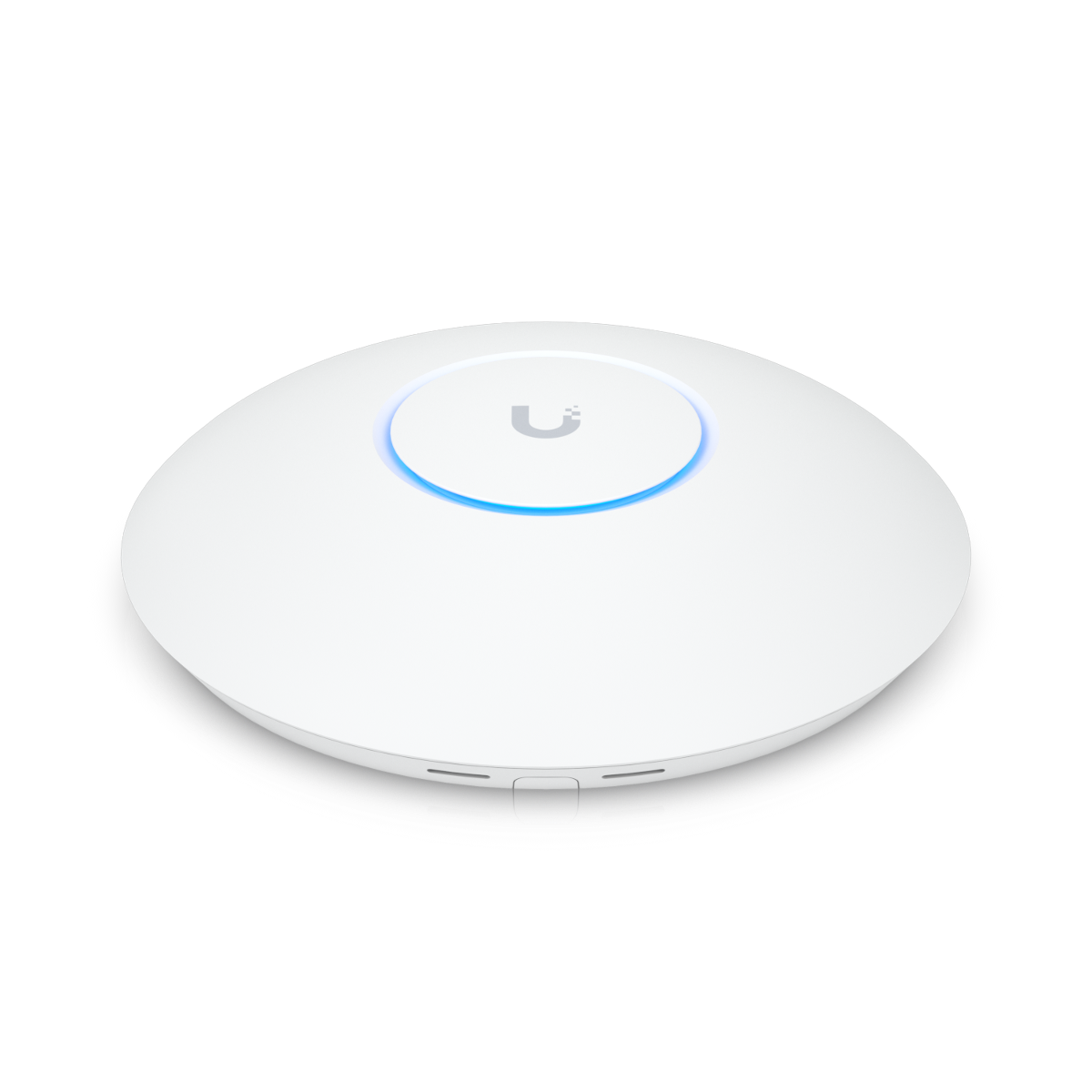

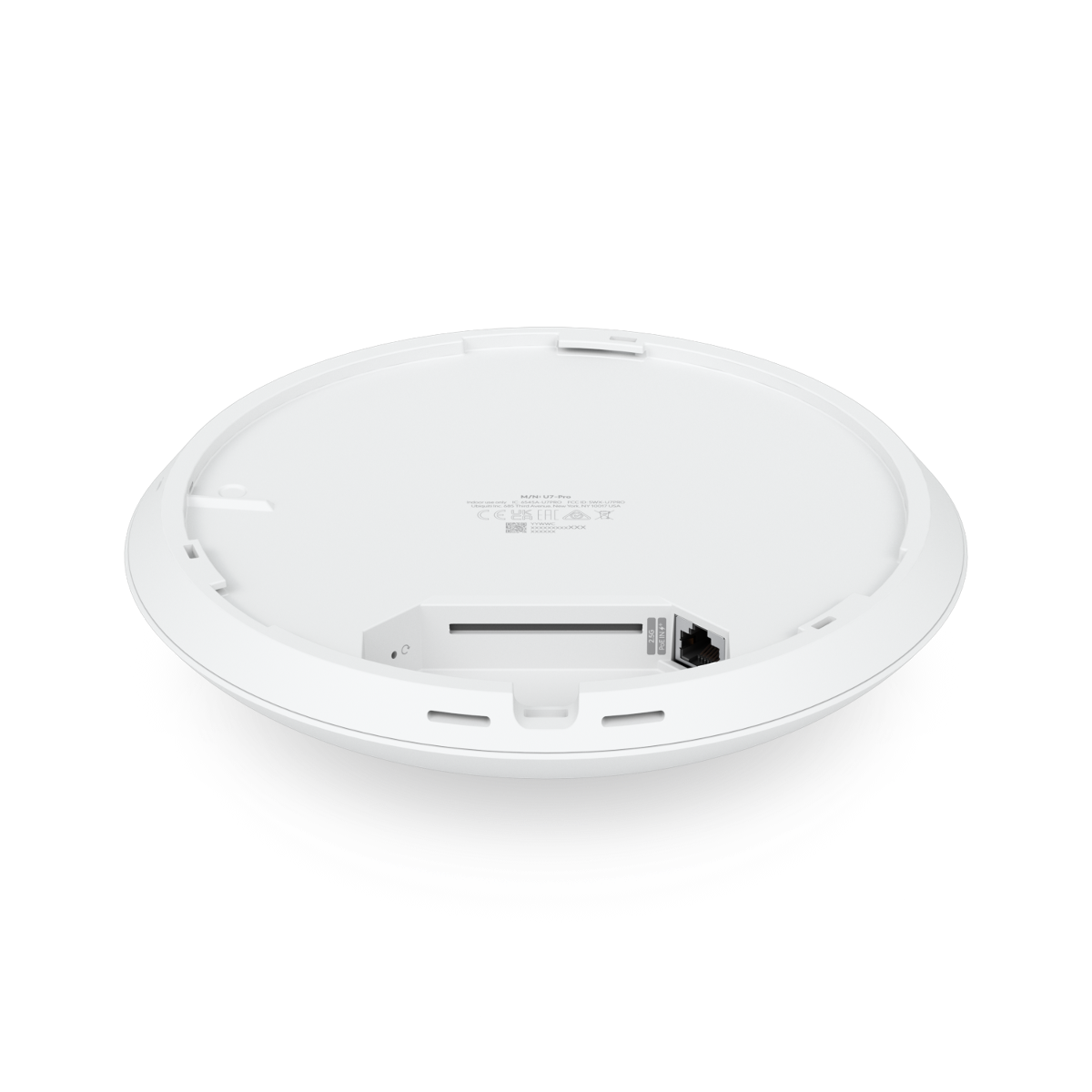

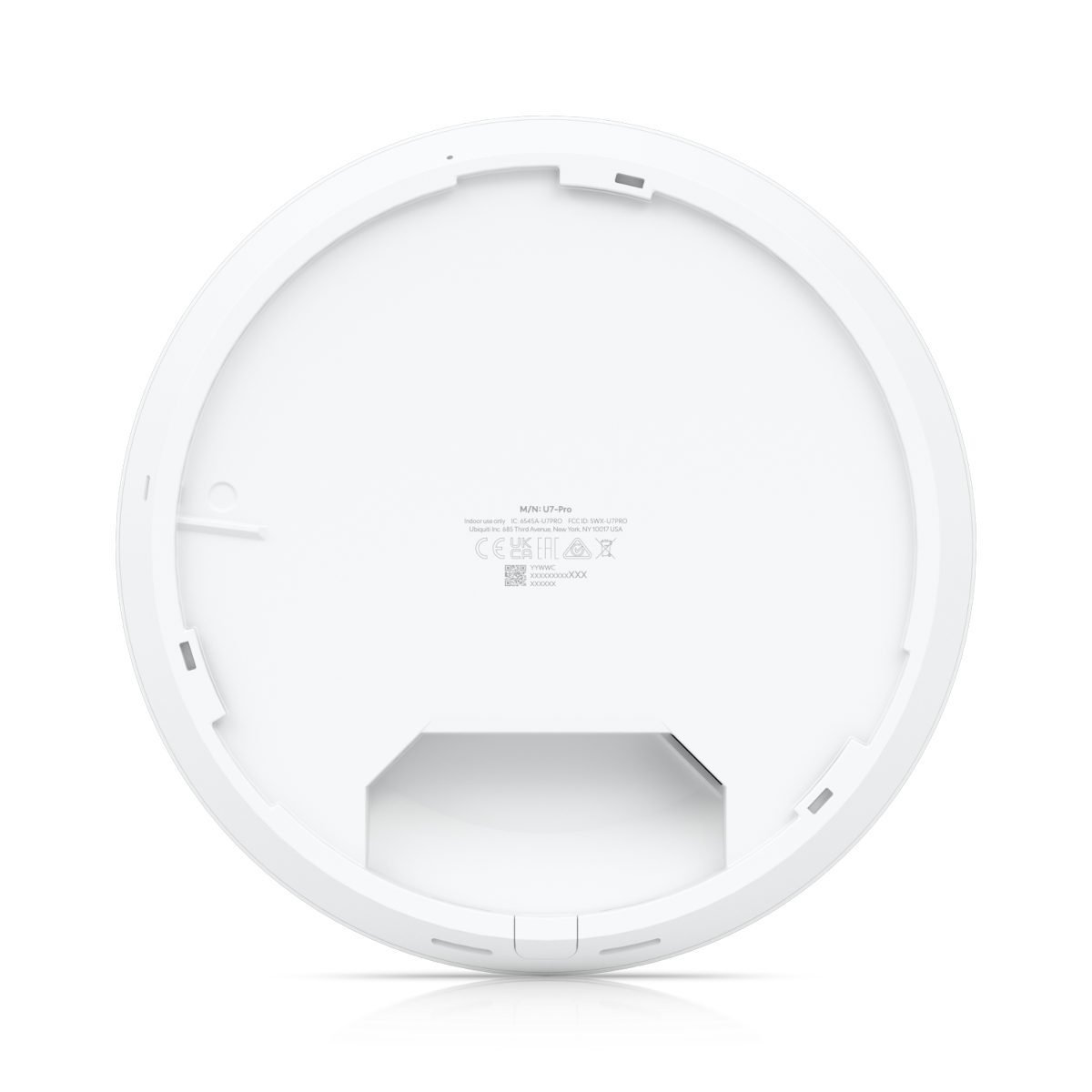

UBIQUITI U7 PRO
Access Point WiFi 7 U7 PRO AP WiFi 7, 5.7Gbps, 1 x 2.5G PoE, MIMO 2x2 (2.4/5/6 GHz)
WiFi standards : 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security : WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID : 8 per radio
VLAN : 802.1Q
Advanced QoS : Per-user rate limiting
Guest traffic isolation : Supported
Concurrent clients : 300+
Networking interface : (1) 1/2.5 GbE RJ45 port
Management interface : Ethernet
Power method : PoE+
Power supply : UniFi PoE switch
Supported voltage range : 44—57V DC
Max. power consumption : 21W
Max. TX power :
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
23 dBm
MIMO :
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate :
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
4.3 Gbps (BW240)
5.7 Gbps (BW320)
Antenna gain :
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.8 dBi
LEDs : White/blue
Button : Factory reset
Mounting : Wall/ceiling (Included)
Ambient operating temperature : -30 to 60° C (-22 to 140° F)
Ambient operating humidity : 5 to 95% noncondensing
Certifications : CE, FCC, IC
|
|
|
|
