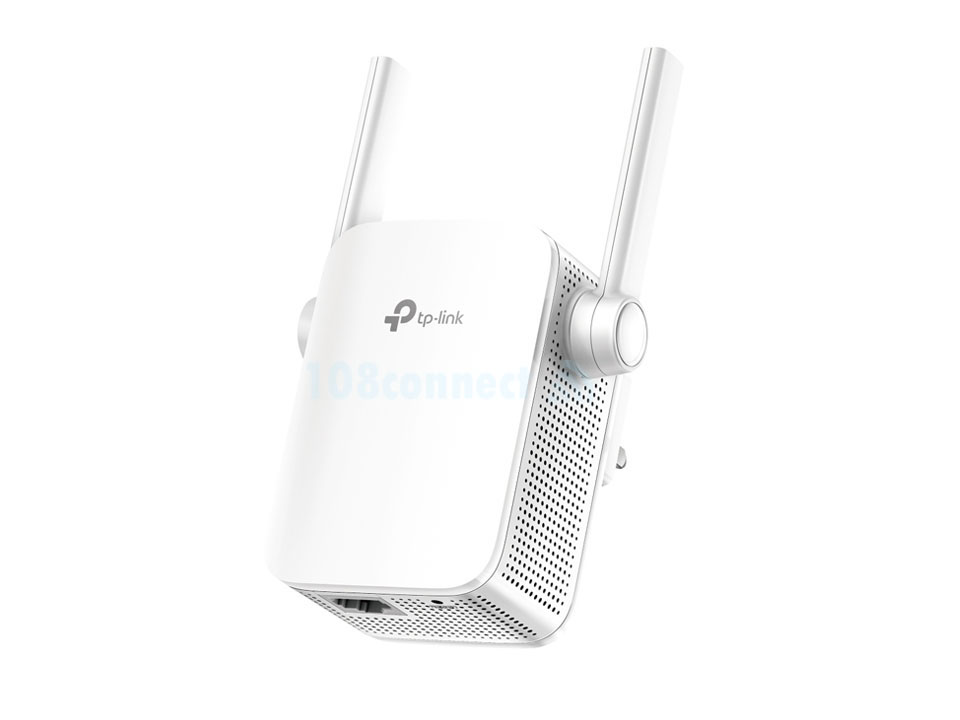

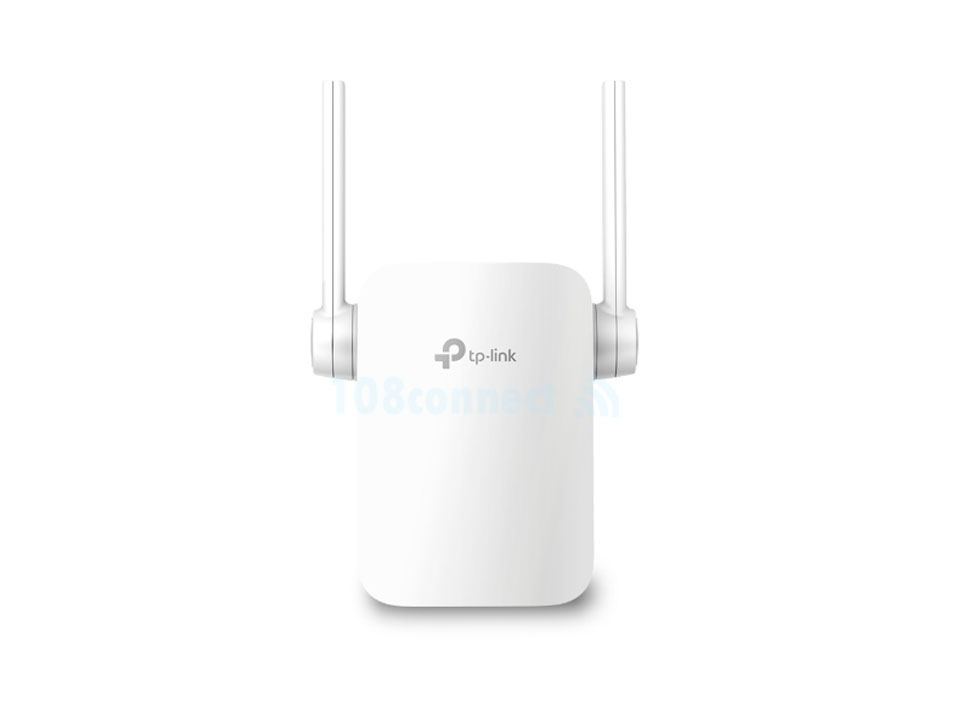

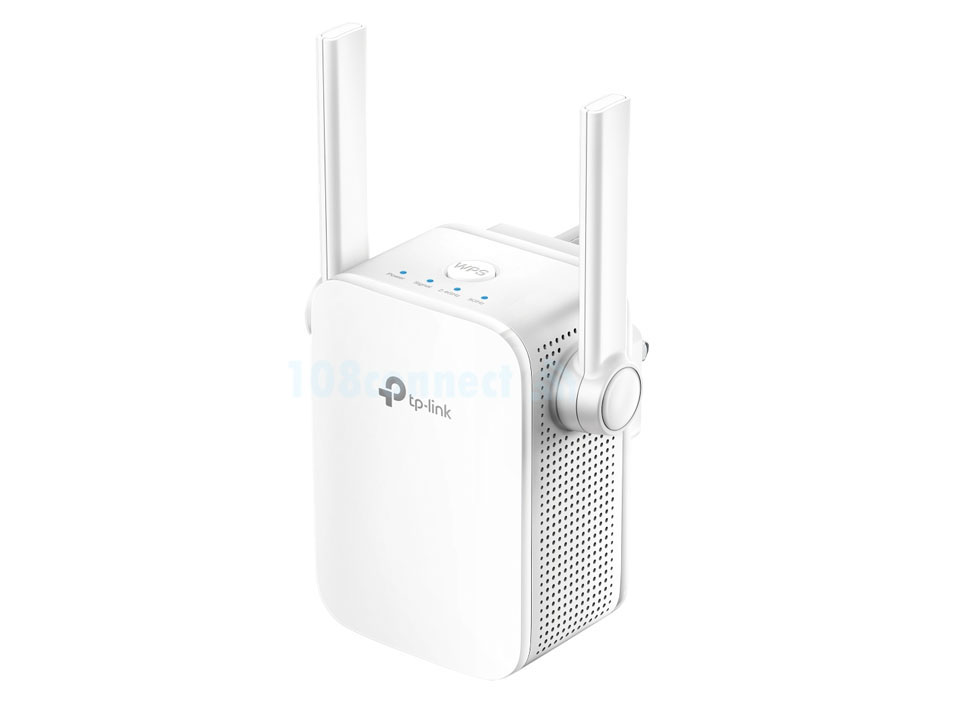

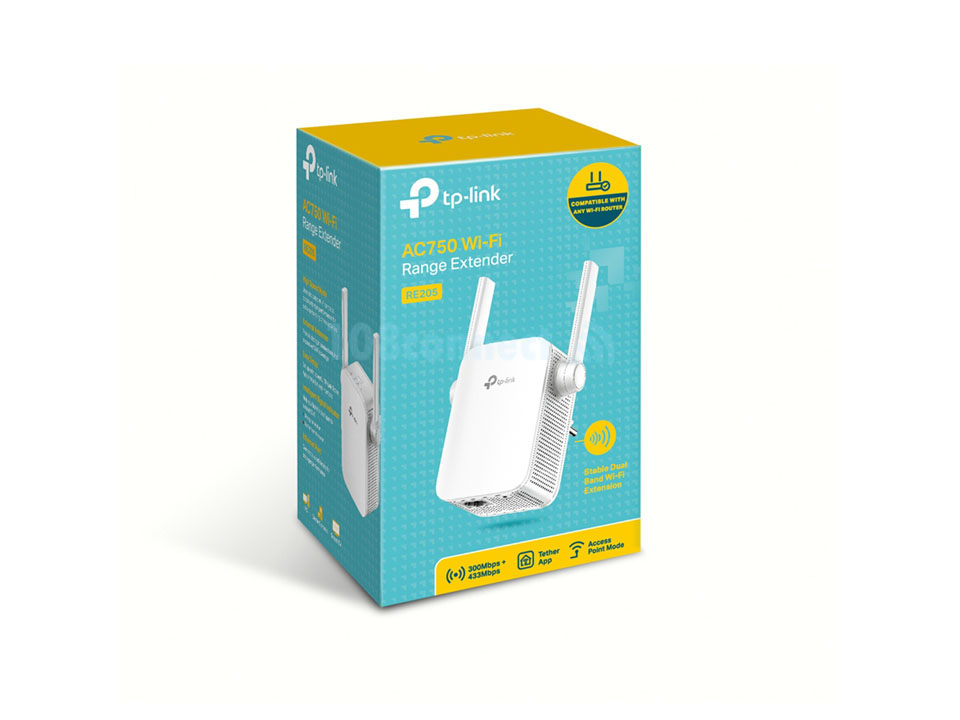

TP-LINK RE205
RE205 AC750 Wi-Fi Range Extender 2.4GHz band(300Mbps) and 5GHz band(433Mbps)
- AC750 รองรับคลื่นความถี่ 2.4 GHz ความเร็วสูงสุดถึง 300 Mbps คลื่นความถี่ 5 GHz ความเร็วสูงถึง 433 Mbps
- ช่องแลน 1 ช่อง (LAN) 10/100 Mbps
- ง่ายต่อการติดตั้งโดยใช้แอปพลิเคชั่น TP-LINK Tether(Google Play) , TP-LINK Tether(App Store)
ดาวน์โหลดได้ทั้ง App Store และ Google Play
Plug Type
- EU, UK, US
Standards and Protocols
- IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface
- 1 x 10/100M Ethernet Port (RJ45)
Button
- WPS Button, Reset Button
Power Consumption
- 7.3W(max power consumption
Dimensions ( W x D x H )
- 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna
- 2 x external
Frequency
- 2.4GHz & 5GHz(11ac)
Signal Rate
- 5GHz:Up to 433Mbps
- 2.4GHz:Up to 300Mpbs
Reception Sensitivity
- 5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER
- 2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
Wireless Modes
- Range Extender/Access Point
- Wireless Statistic
- Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions
- Wireless Statistic
- Concurrent Mode boost both 2.4G/5G Wi-Fi band
- Access Control
- LED Control
- Domain Login Function
Wireless Security
- 64/128-bit WEP
- WPA-PSK / WPA2-PSK
Transmission Power
- <19.5dBm(2.4GHz)
- <19.5dBm(5GHz)
Certification
- CE, FCC, RoHS
Package Contents
- AC1200 Wi-Fi Range Extender RE305
- Quick Installation Guide
Box Dimensions (W X D X H)
- 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS,
- NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
