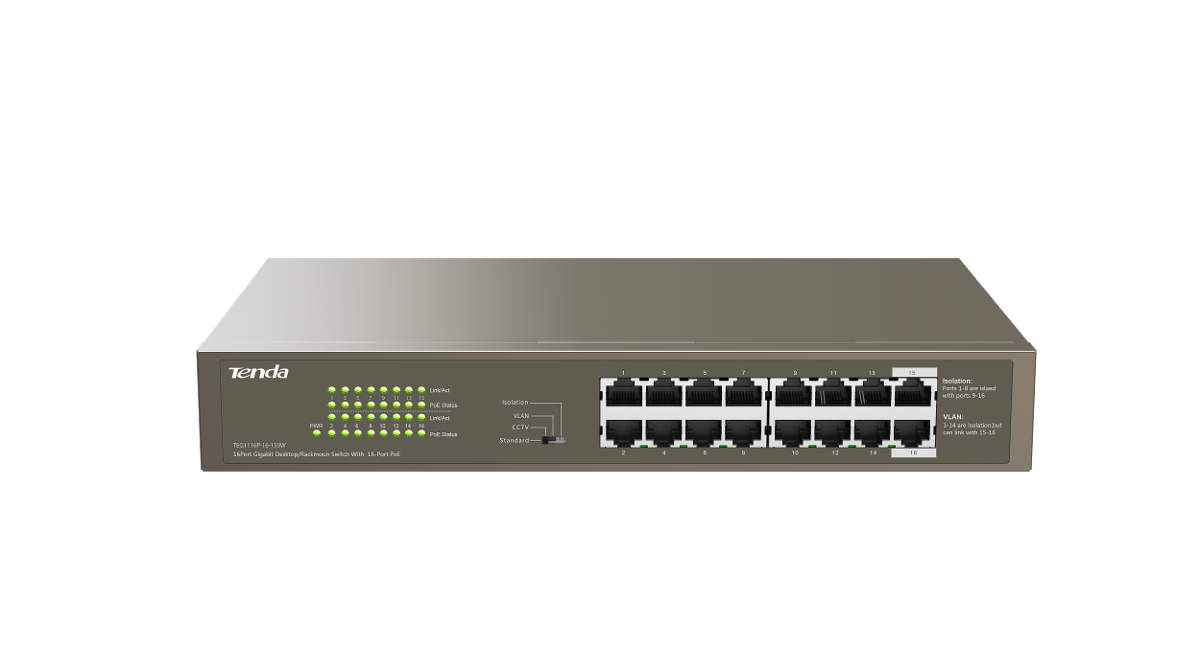

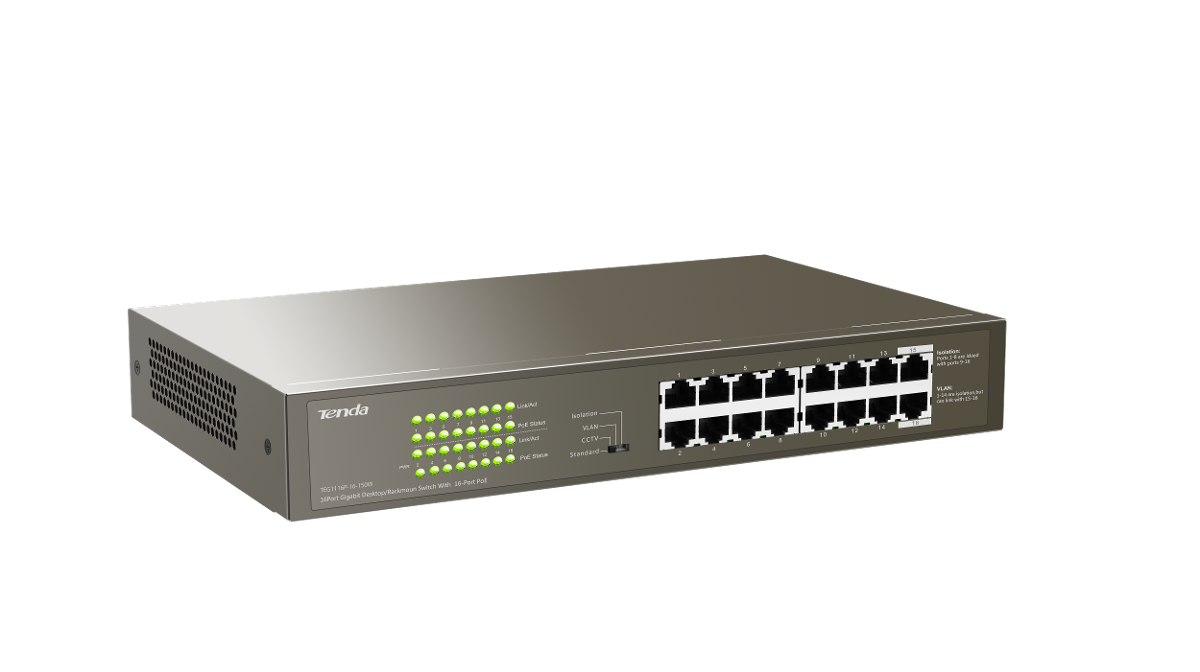

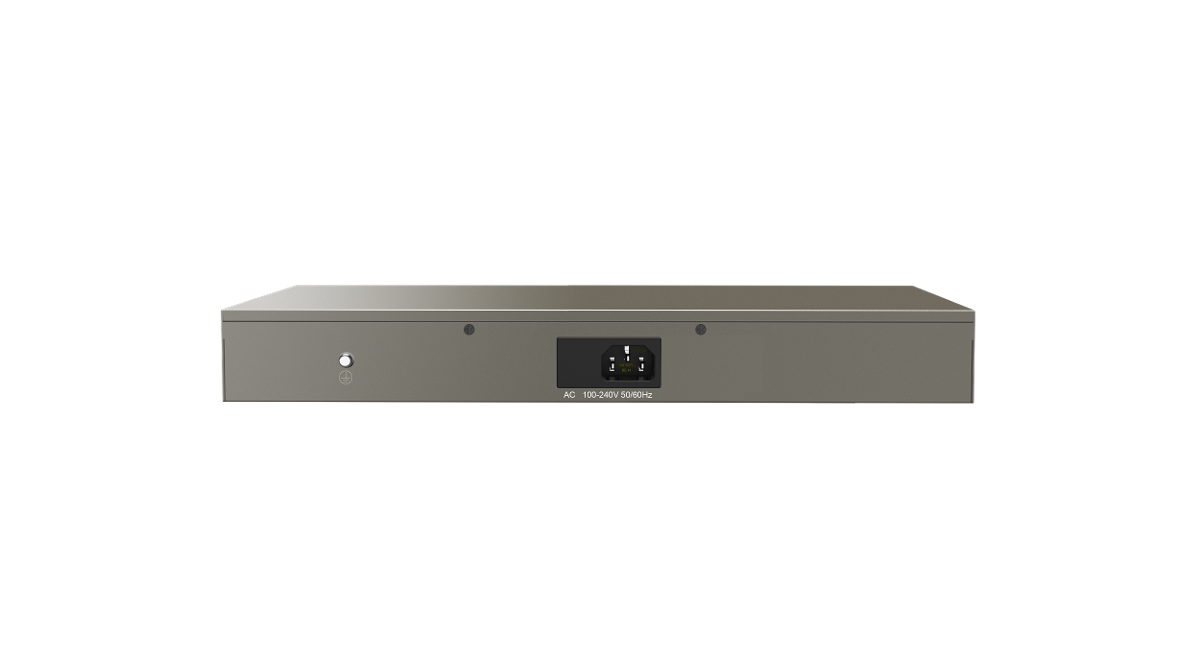

TENDA TEG1116P-16-150W
TEG1116P-16-150W is a Tenda PoE Switch that offers 16 10/100/1000Mbps Base-TX RJ45 ports 1-16 comply with IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135W and can supply power to and exchange data with APs, IP cameras and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras.
Hardware
- Network standards :
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
- LED Indicator :
16*Link/Act per device
16*PoE per device
1*Power per device
- Interfaces :
16*10/100/1000 Base-T ports(Data/Power)
- Transmission media :
Recommended: CAT5/5e UTP or better
- Fan quantity :
N/A
- Dimension :
294.0mmx178.0mmx44.0mm
- Level of protection :
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
- Forwarding mode :
Store-and-forward
- Switch capacity
32 Gbps
- Packet forwarding rate
23.6Mpps
- Buffer
2M
- MAC address table
8K
- Jombo frame
N/A
- PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 135W
- Input voltage
100-240V AC 50/60Hz
- Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
- Environment :
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
- Certification :
FCC、CE、RoHS
|
|
|
|
