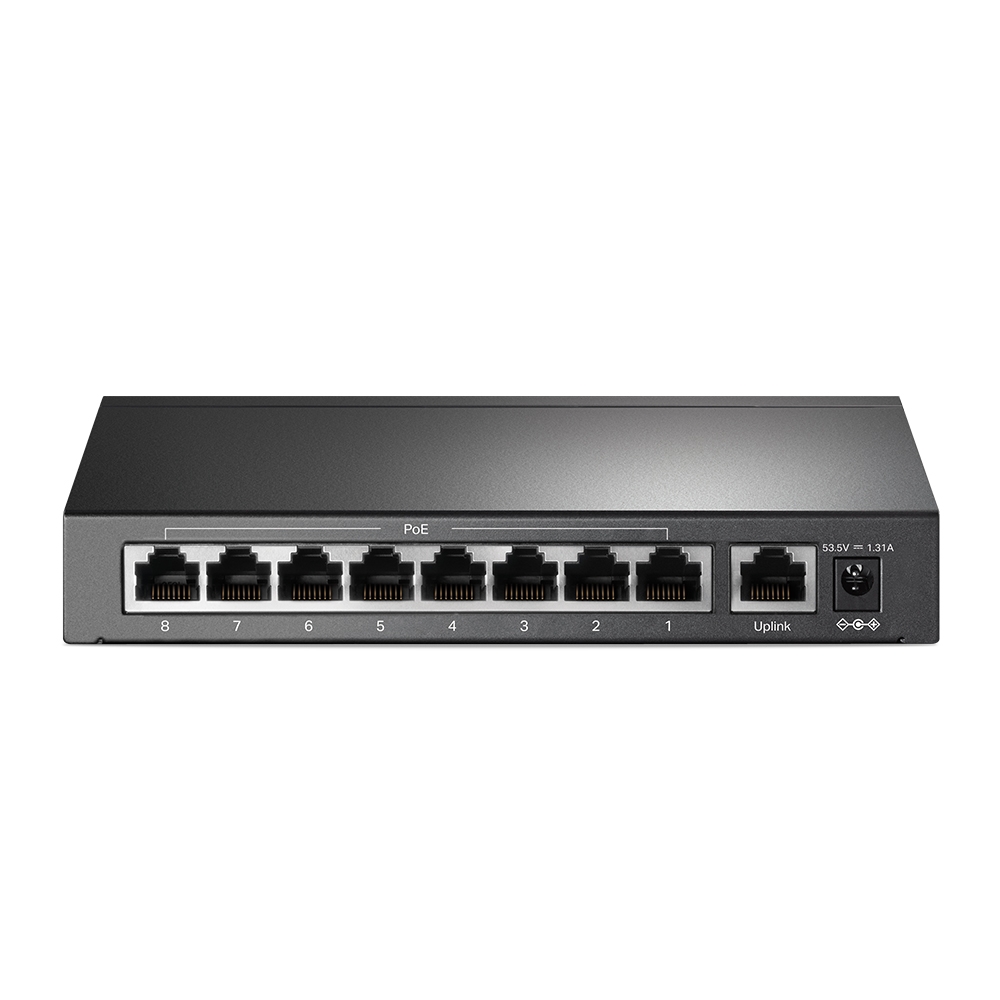

TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
เพิ่มเมื่อ: 2022-10-28 11:02:28.0
แก้ไขล่าสุด: 2022-10-28 11:09:53.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
TP-LINK TL-SF1009P
TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port

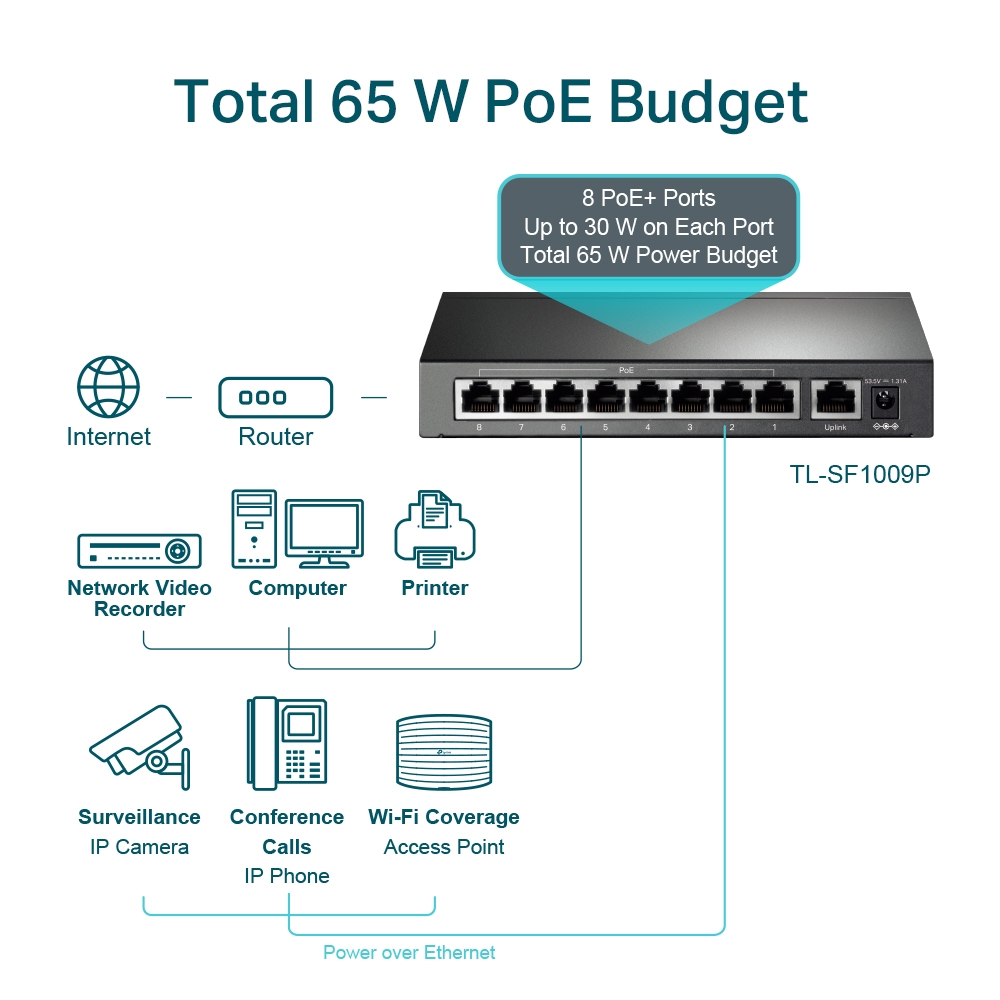

- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**

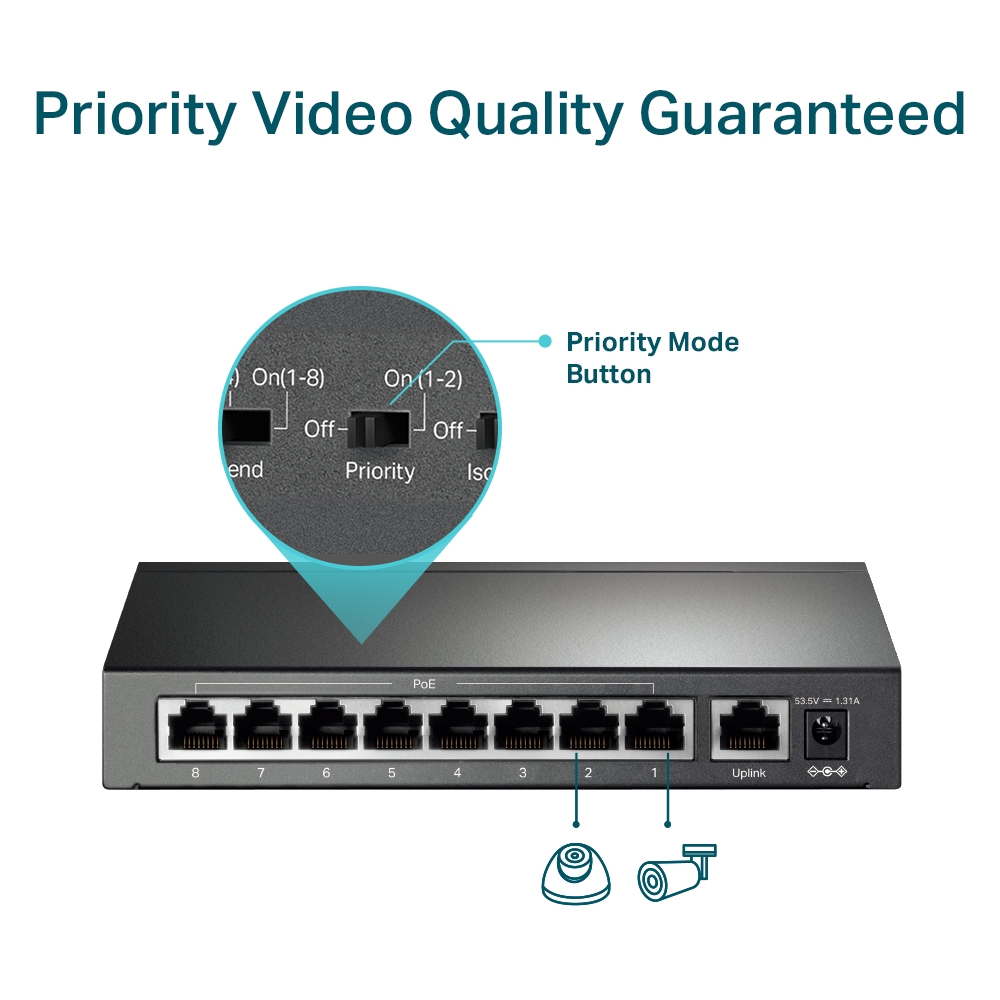

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play with no configuration required
Specifications
Interface :
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
External Power Supply : External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate : 1.3392 Mpps
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
Mac Address Table : 2K
Jumbo Frame : 2 KB
Switching Capacity : 1.8 Gbps
Dimensions ( W x D x H ) : 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption :
• 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation :
• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)
Package Contents :
• TL-SF1009P
• Power Adapter
• Installation Guide
