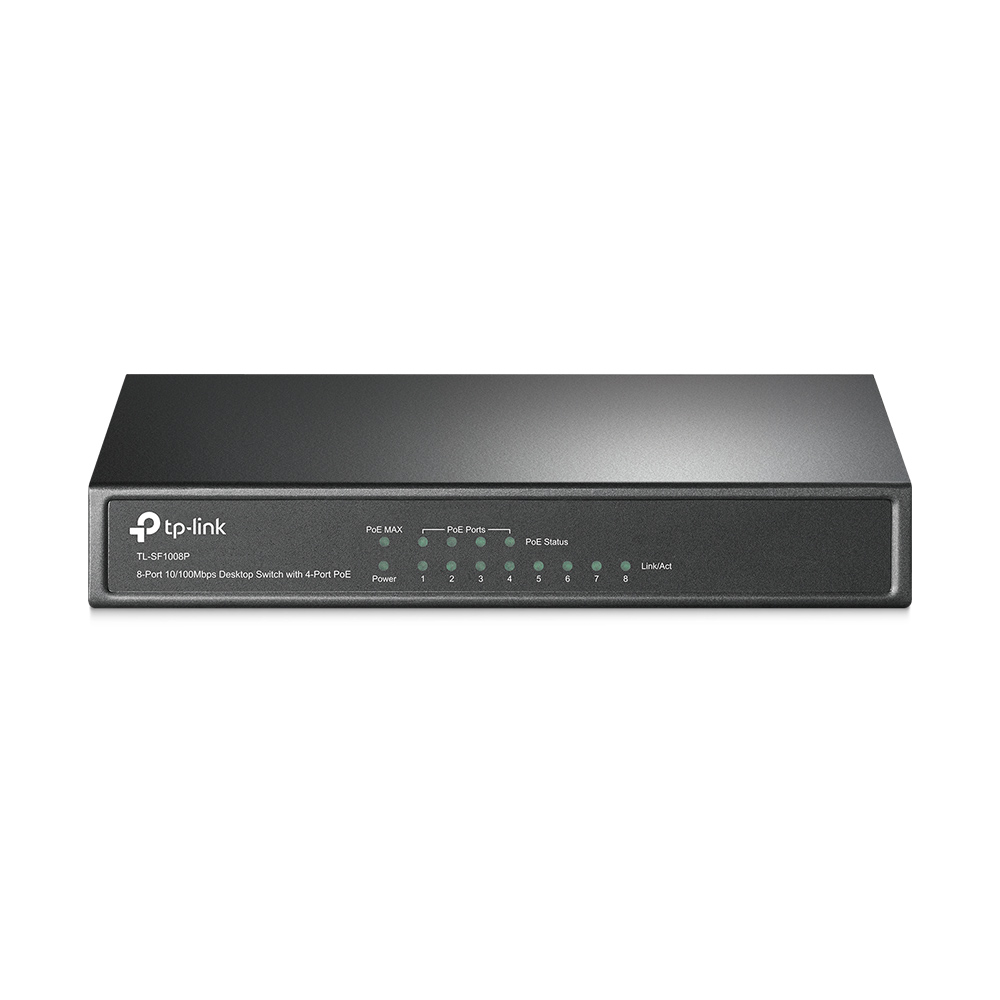

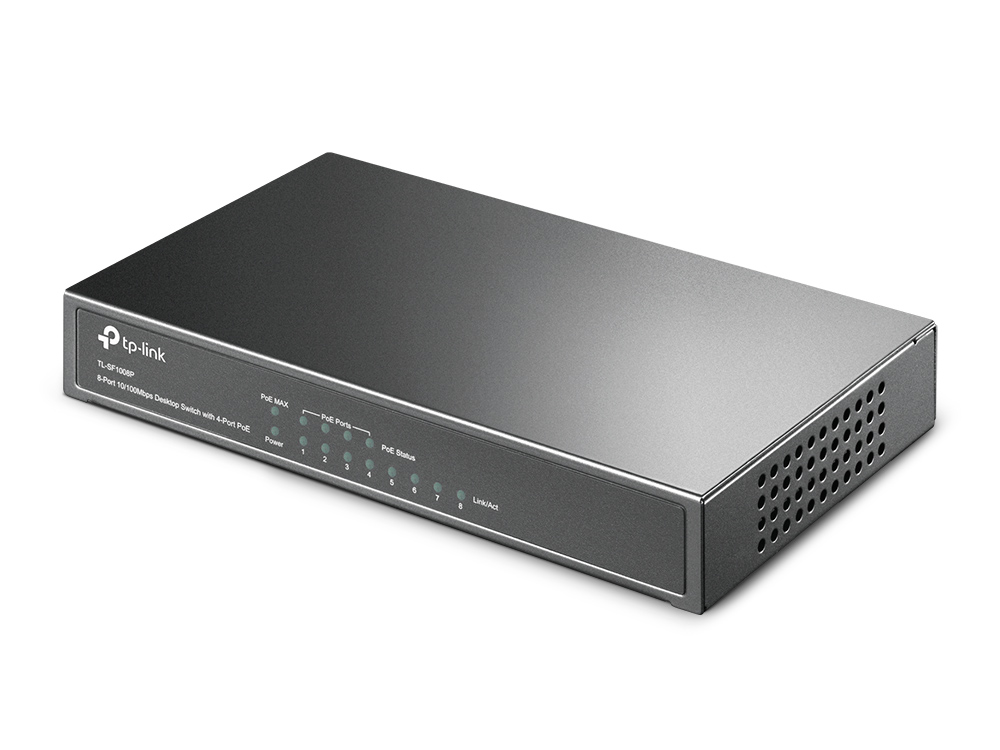

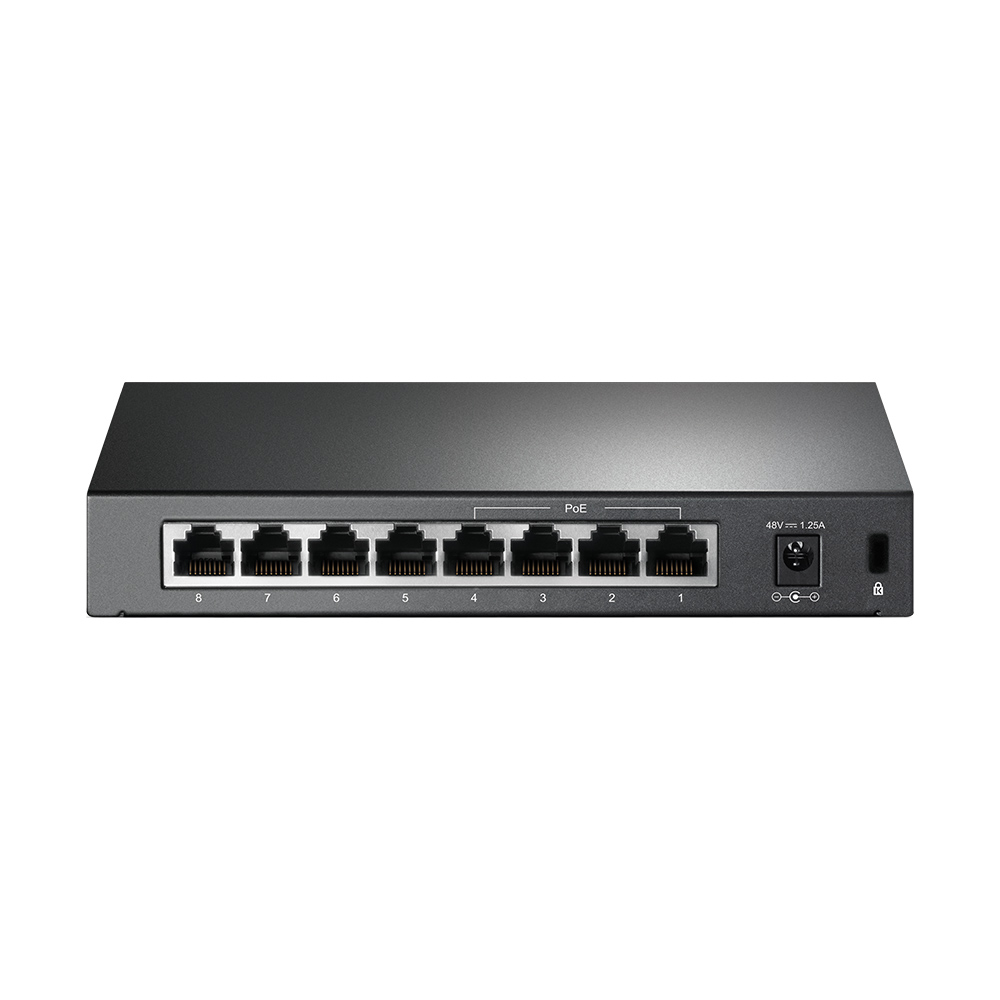

TP-LINK TL-SF1008P 8-Port 10/100Mbps Unmanaged PoE Switch, including 4PoE Port
เพิ่มเมื่อ: 2012-12-04 12:27:50.0
แก้ไขล่าสุด: 2025-01-30 11:13:50.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Unmanaged Switch with 4-Port PoE, steel case(สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SF1008P SWITCH (สวิตซ์) TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Unmanaged PoE Switch with 4-Port PoE
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Requires no configuration and installation
Interface :
• 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
External Power Supply : External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate : 1.1904 Mpps
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 66 W
Mac Address Table : 2K
Jumbo Frame : 2 KB
Switching Capacity : 1.6 Gbps
Dimensions ( W x D x H ) : 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption :
2.27 W (220 V/ 50 Hz. no PD connected)
75.33 W (220 V/ 50 Hz. with 66 W PD connected)
Max Heat Dissipation :
7.74 BTU/h(no PD connected)
256.88 BTU/h(with 66 W PD connected)
