PLANET VC-204 4-Port 10/100Mbps Ethernet over VDSL2 Bridge (Profile 17a)

จำนวนครั้งที่เปิดดูสินค้า : 10267 | ความคิดเห็น: 0

PLANET VC-204 4-Port 10/100Mbps Ethernet over VDSL2 Bridge (Profile 17a)

เพิ่มเมื่อ: 2013-09-30 13:07:43.0

แก้ไขล่าสุด: 2019-05-13 19:04:36.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
VC-204 4-Port 10/100Mbps Ethernet over VDSL2 Bridge 17a (สินค้ารับประกัน 3 ปี)

4900.00 บาท

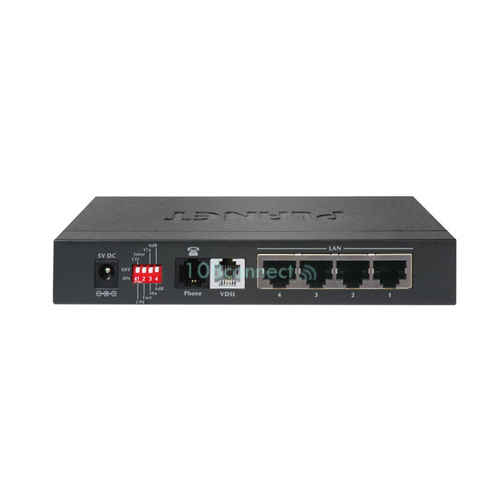

PLANET VC-204

VC-204 4-Port 10/100Mbps Ethernet over VDSL2 Bridge (Profile 17a)

Ethernet Distance Extension
Two VC-204 acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/55Mbps. Telephone service can still be used while the modems are in operation. The two solutions listed below are typical applications for the Ethernet over VDSL converter.

MTU / MDU / Hospitality Solution
The VC-204 is a perfect solution to quickly provide cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units) , commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/55Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provisioned.

Last Mile of FTTx deployment
The VC-204 is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the “last mile” from the ISP / Telecom / Service provider’s fiber node to the buildings and customers´ home. The 10/100Mbps port of VC-204 can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built by Internet because every room or house could use the existing phone line to transmit data through the Internet and the whole building could share the Internet to the wider area network with minimum cost.

Specification

Hardware Specification
Operating Temperature	0~50 Degree C
Storage Temperature	-25~70 Degree C
Operating Humidity	10~90%, relative humidity, non-condensing
Power Requirement	5V DC 2A
Dimension (W x D x H)	155 x 86 x 26 mm
Weight	0.38 kg
Performance	Full VDSL2 bandwidth up to: (Down Stream / Up Stream) • Asymmetric Mode - 200m -> 100/55Mbps - 400m -> 90/50Mbps - 600m -> 70/40Mbps - 800m -> 60/25Mbps - 1000m -> 45/15Mbps - 1200m -> 35/10Mbps - 1400m -> 30/6Mbps - 1600m -> 25/4Mbps • Symmetric Mode - 200m -> 90/90Mbps - 400m -> 90/90Mbps - 600m -> 70/70Mbps - 800m -> 55/50Mbps - 1000m -> 40/35Mbps - 1200m -> 30/25Mbps - 1400m -> 25/20Mbps - 1600m -> 20/15Mbps
LED Indicators	• One Power • 4 for RJ-11 / VDSL2 WAN : - Green, ACT - Green, Sync - Green, CO mode - Green, CPE mode • 1 for per RJ-45 10/100Base-TX port - Green, LNK / ACT
Cabling Type	• 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) • 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) • VDSL: twisted-pair telephone wires (AWG24 or better) up to 1.6km
Encoding	• VDSL-DMT - ITU-T G.993.1 VDSL - ITU-T G.997.1 - ITU-T G.993.2 VDSL2 (Profile 17a Support)
Functionality	• CO / CPE mode select • Selectable fast and interleaved mode • Selectable target band plan • Selectable target SNR mode
DIP Switch	4 position DIP switch
Ports	10/100Base-TX: 4 RJ-45, Auto-negotiation and Auto-MDI / MDI-X VDSL: 1 RJ-11, female Phone Jack PHONE: 1 RJ-11, Built-in splitters for POTS connection
Storage Humidity	10~90%, relative humidity, non-condensing
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Switch fabric	1.6Gbps
Throughput (packet per second)	11.9Mpps
Network cables	10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T - G.993.1 (VDSL) - G.997.1 - G.993.2 VDSL2 (Profile 17a )
