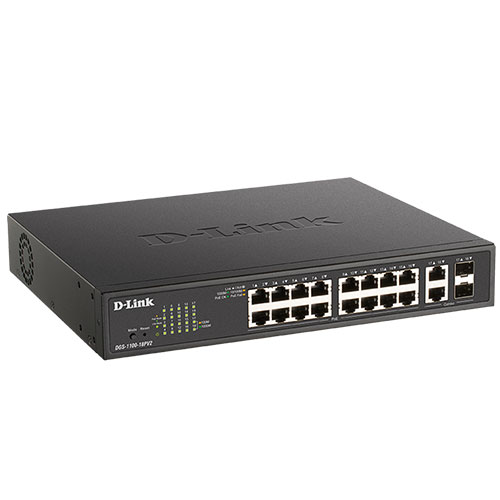

D-LINK DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
เพิ่มเมื่อ: 2022-11-17 11:45:04.0
แก้ไขล่าสุด: 2025-04-27 13:14:58.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) D-LINK DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
D-LINK DGS-1100-18PV2
SWITCH (สวิตซ์) D-LINK DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
• 16 x 10/100/1000BASE-T PoE+ ports
• 2x RJ45/SFP Combo ports
• PoE+ support with up to 30W per port
• 130 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management
Auto MDI/MDIX : Yes
10/100/1000BASE-T PoE ports (802.3af/at) : 16
802.3bt 90W Support : No
10/100/1000BASE-T ports (Including PoE ports) : 16 + 2 (Combo)
Gigabit SFP ports : 2 (Combo)
Port-based Bandwidth Control : Yes
Class of Service (CoS) : Yes
802.3x Flow Control : Yes
Store-and-Forwarding : Yes
Comply with RoHS : Yes
Energy Efficiency Ethernet (EEE) : Yes
FAN : Fixed Fan
Jumbo Frame : 9,216 bytes
Loopback Detection (LBD) : Yes
IGMP Snooping : Yes
802.1AX Link Aggregation : Yes
802.3ad Link Aggregation : Yes
SNMP : Yes
Web-based GUI : Yes
D-Link Discover Protocol (DDP) : Yes
D-Link Network Assistant : Yes
Port Mirroring : Yes
Cable Diagnostics : Yes
Switch Capacity : 36 Gbps
Max. Packet Forwarding Rate : 26.78 Mpps
Maximum Power Consumption (PoE On) : 168W
Maximum PoE Budget : 130 W (30W max. per PoE port)
Rate Limiting : Yes

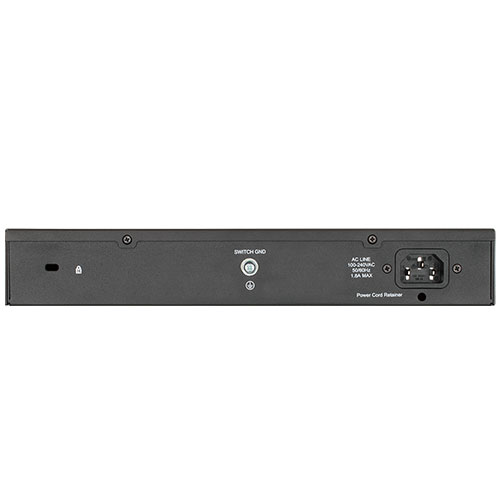

Power Input : AC: 100-240V
Queue Handling : Yes
Strict Priority Queue (SPQ) : Yes
Weighted Round Robin (WRR) : Yes
SSL : Yes
Broadcast/Multicast/Unicast Storm Control : Yes
Traffic Segmentation : Yes
D-Link Safeguard Engine : Yes
DoS Attack Prevention : Yes
802.1D Spanning Tree (STP) : Yes
802.1w Rapid Spanning Tree (RSTP) : Yes
Dimension : 280 x 230 x 44mm
Weight : 2.10kg
Operation Temperature : -5-50°C
802.1Q VLAN : Yes
Port-based VLAN : Yes
Voice VLAN : Yes
Auto Surveillance VLAN : Yes
Asymmetric VLAN : Yes
EMI Certification : FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety Certification : cUL, UL, LVD, CB, BSMI
