EnGenius ECS5512FP Cloud 8-Port 410W PoE++ 10Gb Switch, 4 x 10G SFP+
เพิ่มเมื่อ: 2025-04-28 12:16:35.0
แก้ไขล่าสุด: 2025-04-28 12:17:27.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comMulti-Gigabit Switch EnGenius ECS5512FP Cloud 8-Port 410W PoE++ 10Gb Switch, 4 x 10G SFP+

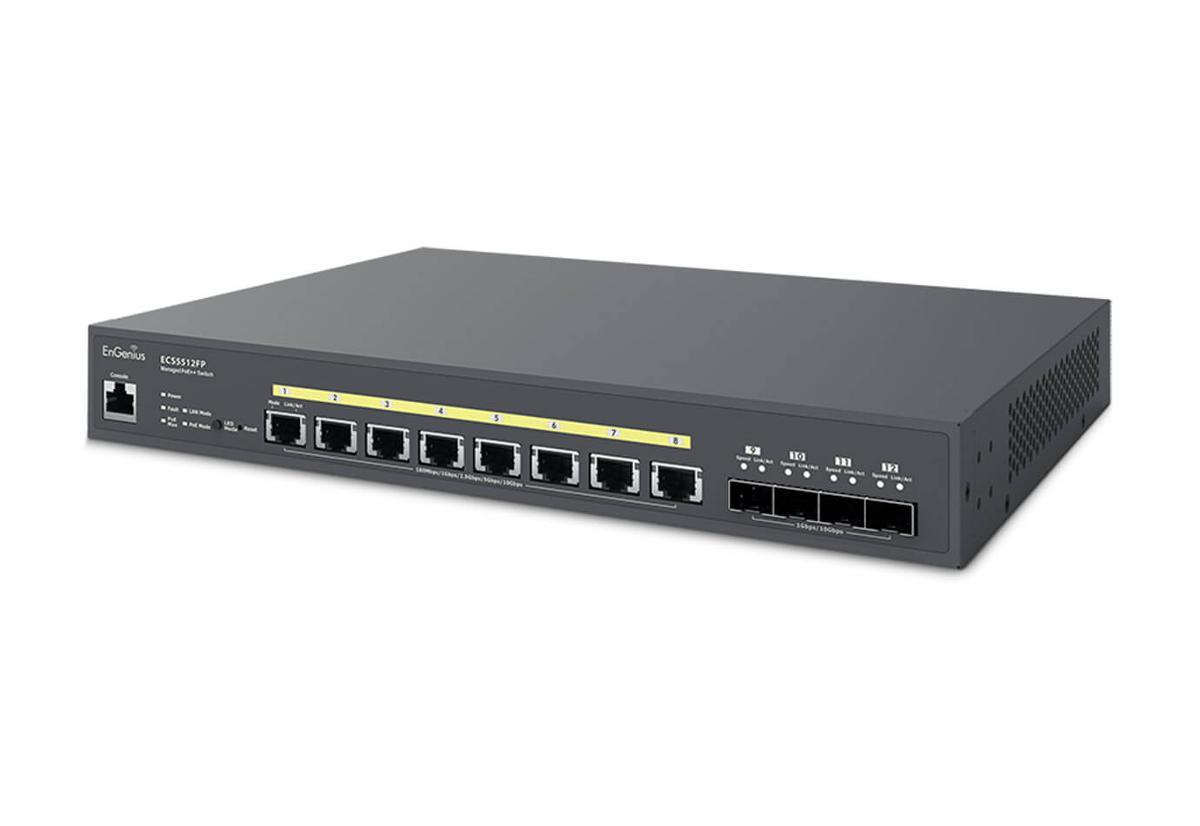

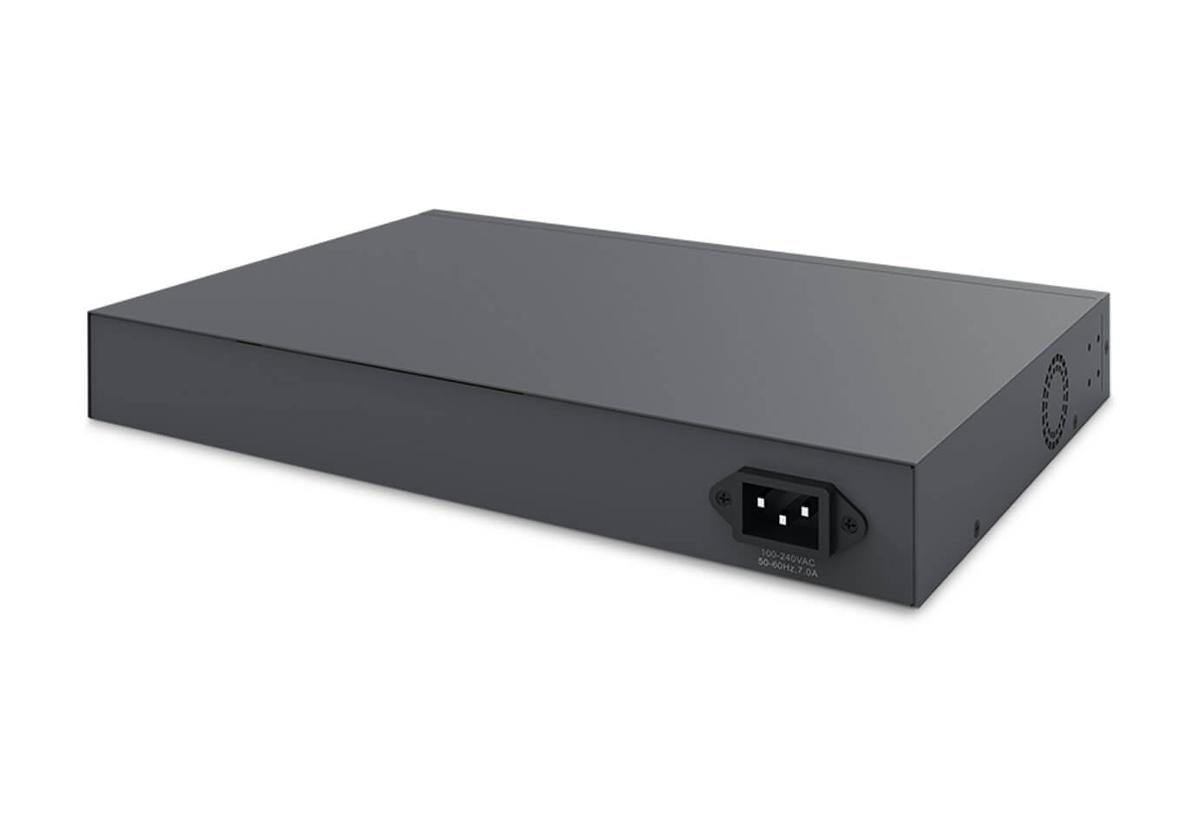

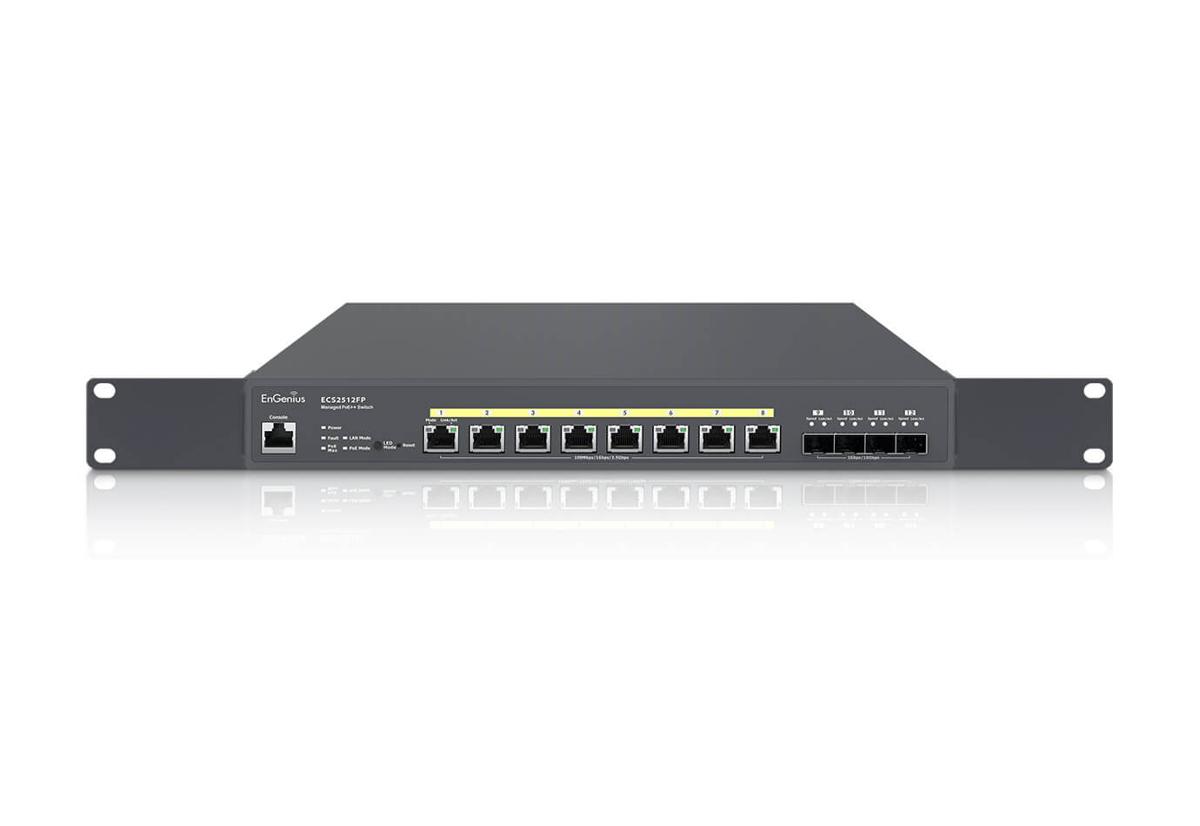

EnGenius ECS5512FP
Multi-Gigabit Switch EnGenius ECS5512FP Cloud 8-Port 410W PoE++ 10Gb Switch, 4 x 10G SFP+
EnGenius Cloud Managed Layer 2+ Aggregate Switch, ECS5512FP is a reliable and easy-to-manage 8-Port 10G PoE++ with 4 -ports 10G SFP+ uplink ports switch that provides high-speed connectivity for your network devices with 410W power budget. Its Zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.
- 8x 10G ports to support ultra-high bandwidth applications
- 4x Dual-Speed 10G SFP+ (fiber) uplink ports to high-speed NAS and servers for a high-performance network
- 8x 802.3af/at/bt PoE++ ports with 410W power budget
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
Technical Specifications
Port Standards : 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Network Ports : 8×100/1000/2500/5000/10000 Mbps Ports
Switching Capacity : 240 Gbps
SDRAM : 512 MB
Flash Memory : 128 MB
Power Source : 100 ~ 240VAC, 50/60Hz
PoE Capable Ports : Ports 1-8 (up to 90W)
Total PoE Budget : 410W
L2 Features
Network Management : EnGenius Cloud Local Web GUI
MAC Address Table : 32K
Jumbo frame size : 10K
Multicast Group : Max 256 groups
MLD Snooping : MLD Snooping: v1
QoS-number of Priority Queues Supported : Queue 8
QoS Trust Mode : Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism : Strict / WRR/ Strict + WRR
Bandwidth Control : Port-based bandwidth control (Ingress)
Port Security : Max. 256 Entries
Access Control List (ACL) : MAC Based ACL IPv4/IPv6 Based ACL ACL Binding
Web Graphical User Interface (GUI) : HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
SNMP : SNMP v1/v2c/v3 Support
RMON : RMON 1,2,3,9
System Time : Time Setting/Daylight saving
Common L2 Features :
802.1D Spanning Tree 802.1w Rapid Spanning Tree 802.1S Rapid Spanning Tree Loopback Detection Multicast Filitering IGMP Snooping 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up Voice VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings/ IPv6 Settings Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG
L3 Features
Multiple IP Interface : 20 IPv6 address
ARP Table : Max. 192 ARP entries
IPv4 Static Route : Max. 63 entries
IPv6 Static Route : Max. 21 entries
Environmental & Physical
Temperature Range : Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing) : 5% – 95%
Dimensions & Weight
ECS5512FP Device : Weight: 3.1 kg Width: 230 mm Length: 330 mm Height: 44 mm
Package Contents : 1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
